PRV Audio 12W800A 12" Alto Series Woofer - 8 Ohm

$116.99
$126.99
8% Off
SKU: 12W800A
Condition: New
Availability: Usually Ships In 1-2 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: PRV Audio 12W800A 12" Alto Series Woofer - 8 Ohm (Each)

High fidelity meets high output — PRV Audio ALTO Series Woofers. Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. That’s why PRV Audio’s Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic.

With improved excursion and higher power handling over PRV’s popular 12W750A, the 12W800A Alto series 12″ professional 8 ohm woofer offers improved output capability and more low frequency impact.

Its robust design ensures durability and reliability, making it suitable for demanding environments. Additionally, the 12W800A offers excellent thermal management and low distortion, ensuring dynamic midbass reponse with clear and accurate sound reproduction across various applications.

Featuring a multi-roll surround, large raised spider, and 2.50″ light-weight voice coil, the 12W800A is capable of high output while keeping distortion under control.

Thanks to its high x-max of 5.72 mm, this speaker can handle high excursion tones without compromising sound quality. This allows it to deliver impressive low frequency performance while maintaining clarity and definition on vocals. Whether you’re building a home theater or a car audio system like a stuntwall, the 12W800A ensures powerful and precise audio reproduction.

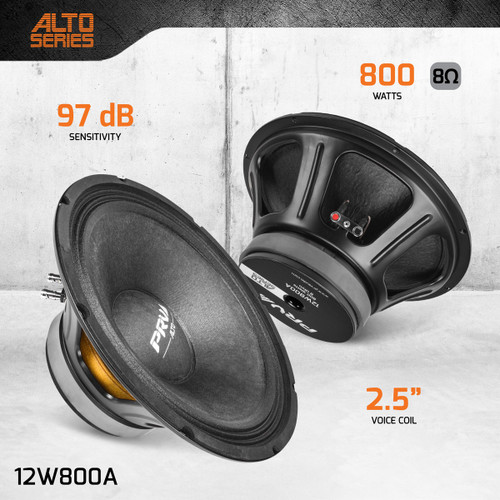

 Product Highlights:

  • Nominal Impedance: 8 Ohm
  • 800 Watts Program RMS power makes high acoustic output
  • 60 to 5,500 Hz frequency response makes this midbass/woofer suitable for two or three-way designs
  • Capable of extreme output levels with 97 dB sensitivity
  • High 5.72 mm Xmax allows excellent displacement for high impact bass capability

Specifications:

  • Nominal Diameter: 12" (305 mm)
  • Nominal impedance: 8 Ohm
  • Nominal Power Handling: 400 Watts
  • Continuous Program Power (RMS): 800 Watts
  • Max Peak Power: 1600 Watts
  • Sensitivity 2.83V at 1m: 97 dB
  • Recommended Hi Pass Crossover**: 115 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB: 55 - 5800 Hz
  • Voice Coil Diameter: 2.5" (65 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 16.2 mm
  • Former Material: Polyimide
  • Magnetic Gap Depth: 6.5 mm
  • Frame Material: Stamped Steel
  • Sold Individually

Thiele-Small Parameters

  • Equivalent Volume (Vas): 93.9 l
  • Excursion (Xmax): 5.72 mm
  • Free Air Resonance (Fs): 49.8 Hz
  • Mechanical Factor (Qms): 11.89
  • Electrical Factor (Qes): 0.49
  • Total Factor (Qts): 0.47
  • Cone Area (Sd): 552 cm²
  • Mechanical Mass (Mms): 46.24 g
  • Bl Factor (Bl): 12.71 Tm
  • Dc Resistance (Re): 5.5 Ohms
  • Inductance (Le): 0.45 mH at 1 kHz
  • Mechanical Mass Without Air (Mmd): 38.90 g
  • Mechanical Compliance (Cms): 0.221 mm/N

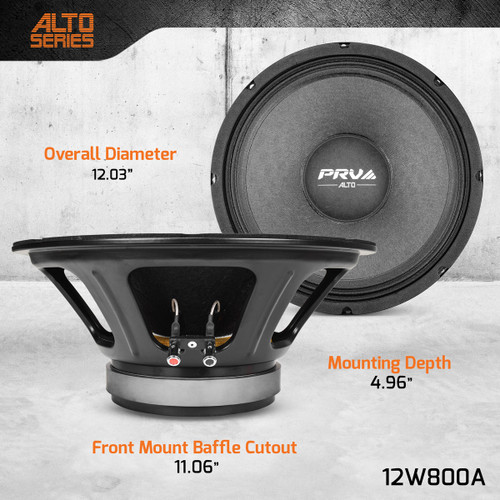

Mounting and Shipping Information:

  • Overall Diameter : 12.03” (305.5 mm)
  • Front Mount Baffle Cutout: 11.06” (281 mm)
  • Mounting Depth: 4.96” (126 mm)
  • Overall Depth: 5.22” (132.5 mm)
  • Weight: 23.04" Lbs 10.8 Lbs (4.9 kg)
