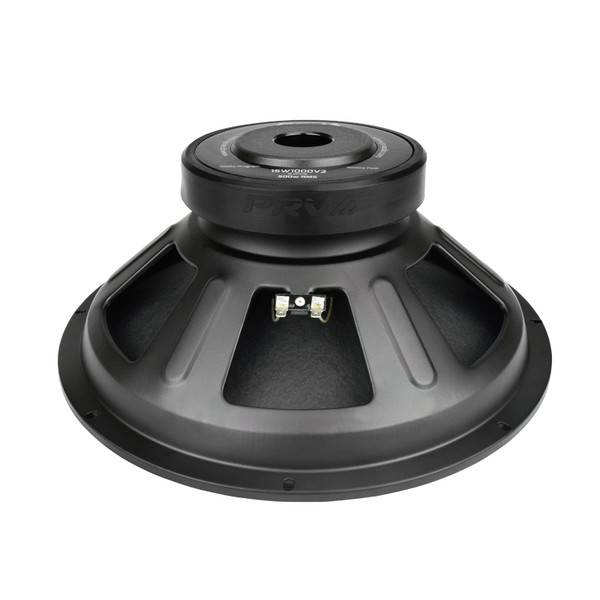

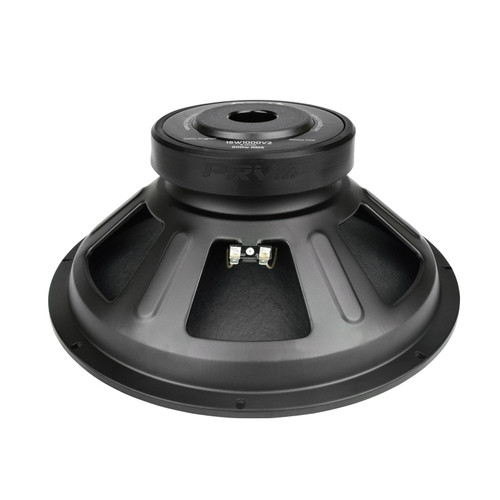

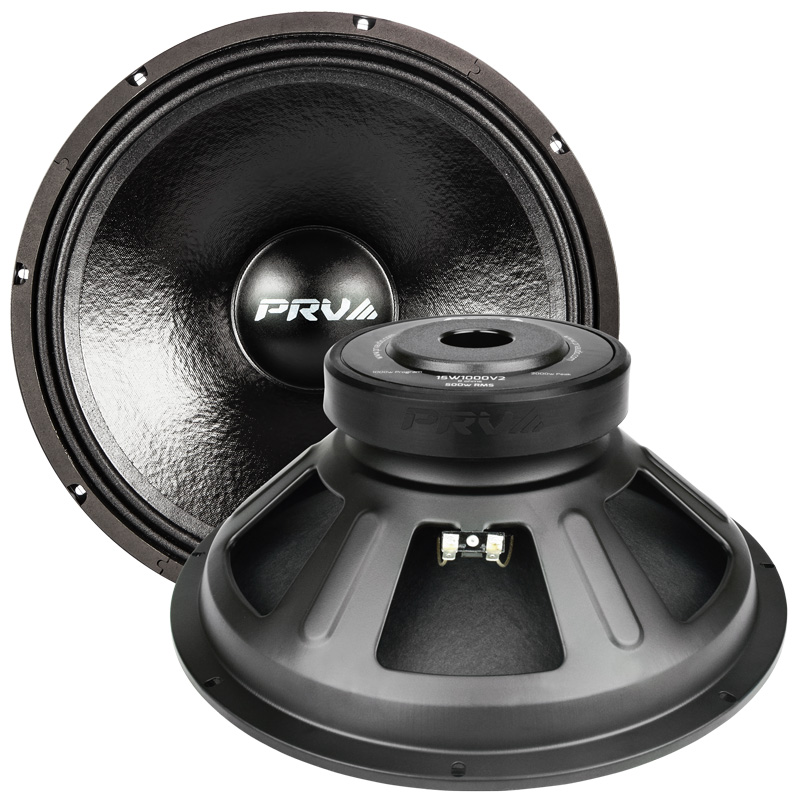

About: PRV Audio 15W1000 v2 15" 500W RMS Pro Audio  Weather Resistant Woofer - 8 Ohm (Each)

The PRV Audio 15W1000 v2 woofer is designed with a reinforced cone and M-roll surround. It offers outstanding durability and high power handling. The cone is treated to be water resistant making it a perfect replacement for your weather beaten speakers and for use in outdoor applications.

The 15W1000-v2 offers a large 3” voice coil providing better cooling and rigidity, leading to increased life expectancy and accurate response. The cone was developed and tested with the necessary stiffness to withstand intense use while still offering a smooth, accurate sound. The magnet assembly attached to a newly reinforced steel frame completes the 15W1000v2 to ensure a solid support structure, for long lasting play in almost most any environment.

Product Highlights:

• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 500 Watts
• Program Power: 1000 Watts
• Sensitivity (1W/1m): 97 dB
• Voice Coil Diameter: 3″

Specifications:

• Nominal Diameter: 15" (381 mm)
• Nominal Impedance: 8 Ohms
• Power Handling:
• Rated Power Handling: 500 Watts
• Program Power: 700 Watts
• Sensitivity 2.83V at 1m: 97 dB
• Recommended Hi Pass Crossover: 80 Hz* *12dB Per Octave Crossover
• Frequency Response at -10dB: 40-4000 Hz
• Voice Coil Diameter: 3" (76 mm)
• Voice Coil Wire: Copper
• Voice Coil Winding Depth: 16.5 mm
• Former Material: Aluminum
• Magnetic Gap Depth: 7.5 mm
• Frame Material: Stamped Steel
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 206.1 l
• Excursion (Xmax): 6.37 mm
• Free Air Resonance (Fs): 39.56 Hz
• Mechanical Factor (Qms): 25.90
• Electrical Factor (Qes): 0.69
• Total Factor (Qts): 0.68
• Cone Area (Sd): 990 cm²
• Mechanical Mass (Mms): 107.45g
• Bl Factor (Bl): 14.54 Tm
• Dc Resistance: (Re): 5.5 Ohms
• Inductance (Le): 1.04 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 89.82 g
• Mechanical Compliance (Cms): 0.150 mm/N

Mounting and Shipping Information:

• Overall Diameter: 15.20" (386 mm)
• Front Mount Baffle Cutout: 13.90" (353 mm)
• Mounting Depth: 5.82"(148 mm)
• Overall Depth: 6.18" (157 mm)
• Net Weight: 12.20 Lbs (5.53 kg)
• Shipping Weight: 13.74 Lbs (6.23 kg)
