PRV Audio

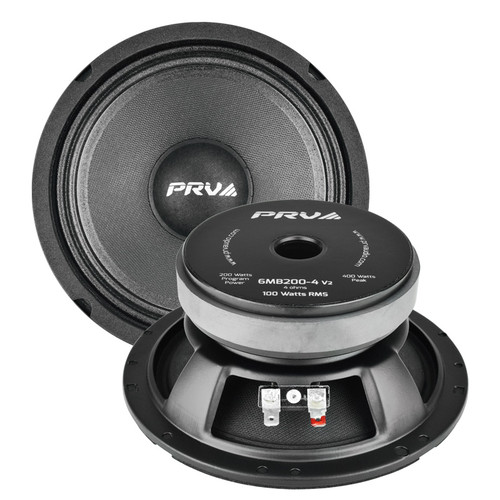

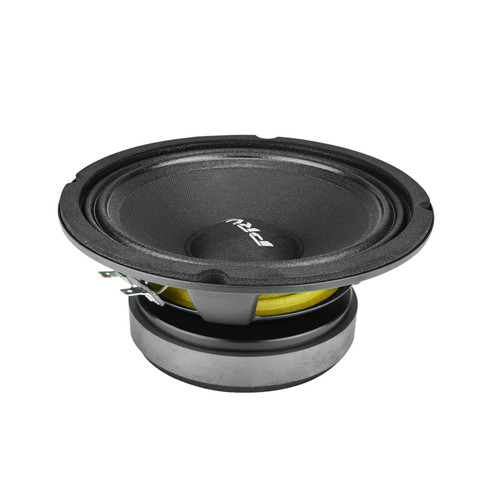

PRV Audio 6MB200-4 V2 6.5" 100W RMS Mid Bass Loudspeaker - 4 Ohm

$36.99
$24.99
SKU:
6MB200-4 v2
UPC:
602938022026
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

PRV Audio 6MB200-4 V2 6.5" 100W RMS Mid Bass Loudspeaker - 4 Ohm

$36.99
$24.99

About: PRV Audio 6MB200-4 V2 6.5" 100W RMS Mid Bass Loudspeaker  - 4 Ohm (Each)

The PRV Pro Audio Loudspeaker, 6MB200-4 v2 mid bass woofer, offers outstanding durability and a smooth punch of mid bass for small enclosures. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors.

The 6MB200-4 v2 now has more extended mid range response, up to 6.5 kHz compared to its previous model, and is a perfect option for mid range driver replacements in three-way cabinets. The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment. Its light weight of only 3.3 Lbs helps to keep your enclosures light, making it perfect for car audio applications.

Product Highlights

  • Nominal Impedance: 4 Ohms
  • Rated AES Power Handling (RMS): 100 Watts
  • Program Power: 200 Watts
  • Sensitivity (1W/1m): 93.5 dB
  • Voice Coil Diameter: 1.5″
  • Sold individually

 Specifications:

  • Nominal Diameter: 6.5" (152 mm)
  • Nominal Impedance: 4 Ohms
  • Rated AES Power Handling (RMS): 100 Watts
  • Program Power: 200 Watts
  • Sensitivity (1W/1m): 93.5 dB
  • Recommended Hi Pass Crossover: 125Hz @ 12db Per Octave Crossover
  • Frequency Response: 125Hz – 6.5KHz
  • Voice Coil Diameter: 1.5" (38 mm)
  • Voice Coil Wire: Copper
  • Voice Coil Winding Depth: 12.5 mm
  • Former Material: Kapton
  • Magnetic Gap Depth: 5.8 mm
  • Frame Material: Stamped Steel
  • Sold Individually

Thiele-Small Parameters:

  • Equivalent Volume (Vas): 3.97 l
  • Xmax: 4.80 mm
  • Resonance Frequency (Fs): 123.79 Hz
  • Mechanical Factor (Qms): 20.84
  • Electrical Factor (Qes): 1.02
  • Total Factor (Qts) 0.97
  • Cone Area (Sd): 154 cm²
  • Mechanical Mass (Mms): 11.89 g
  • Bl Factor (Bl): 5.79 Tm
  • Dc Resistance (Re): 3.7 Ohms
  • Inductance (Le): 0.18 mH at 1 kHz
  • Mechanical Mass Without Air (Mmd): 10.92 g
  • Mechanical Compliance (Cms): 0.139 mm/N

Mounting and Shipping Information:

  • Overall Diameter: 6.53" ( 166 mm)
  • Baffle Cut Out: 5.63" (143 mm)
  • Mounting Depth: 2.6" (66 mm)
  • Overall Depth: 2.91" (74 mm)
  • Weight: 3.30 Lbs (1.50 kg)
