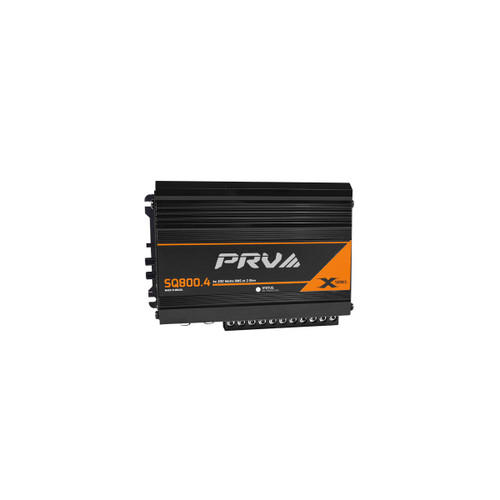

About: PRV Audio SQ800.4 4 Channel Mini Full Range Amplifier - 2 Ohms

X Series digital amplifiers are all about ultra compact design, where performance is not sacrificed! Our engineering team focused on achieving fidelity first, and then on making our X Series amplifiers amazingly efficient and small.

The new line of technology features the most compact and enhanced design in the market, dedicated for motorsports application such as: Custom Motorcycles, ATVs and Slingshots! Its small heatsink offers high fidelity sound, with precise midbass punch and crystal clear highs.

Product Highlights:

• Max Output Power of 1040 Watts RMS Dynamically, 4x 200 Watts at 2 Ohms- 4 Channel full range amplifier stable at 2 Ohms each gives you the benefit to wire multiple speakers and dividing the power.
• Ultra Compact Design, where performance is not sacrificed! Dimensions: 6.50″ Wide x 4.45″ Length x 2″ Height

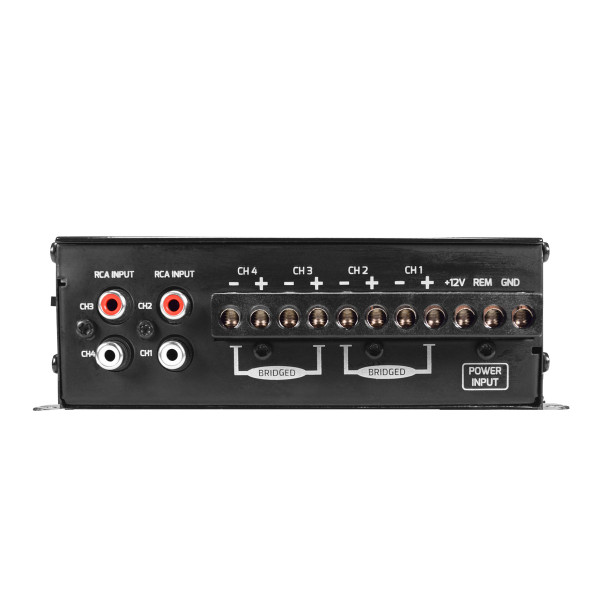

• 8 Gauge power/ground connectors and 8 Gauge speaker terminals
• The SQ800.4 2 Ohm is rated at 4x 200 Watts RMS at 13.0 volts with 80% efficiency.
• Bridgeable: Double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohms per bridged channel at output power of 2 x 400 Watts RMS

Specifications:

• Number of Channels: 4
• Max Dynamic Output: 4 x 260 Watts RMS 2 Ohms
• RMS Power at 2 Ohms 13.0 Volts: 4x 200 Watts RMS
• RMS Power at 4 Ohms 13.0 Volts: 4x 160 Watts RMS
• Bridged RMS Power at 4 Ohms 13.0 Volts: 2x 400 Watts RMS
• RMS Power at 2 Ohms 14.4 Volts: 4x 260 Watts RMS
• Bridged RMS Power at 4 Ohms 14.4 Volts: 2x 520 Watts RMS
• Supply Voltage: 10 ~ 16V
• Frequency Response: 20Hz ~ 25KHz

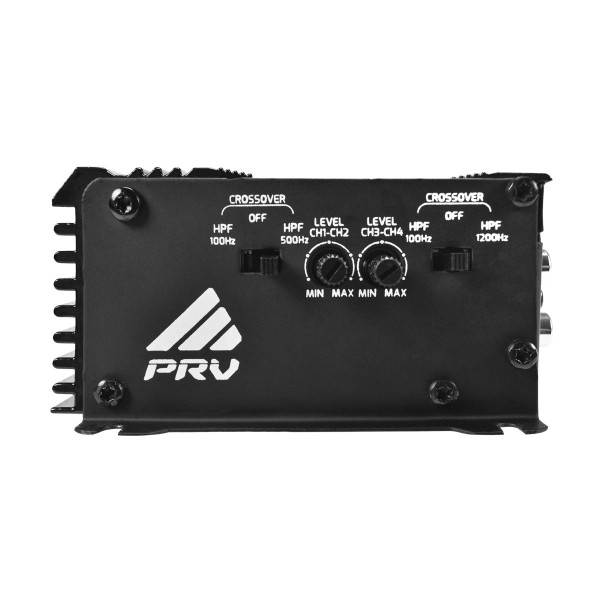

• Channel 1&2 Crossover High Pass Filter: 100Hz or 500Hz
• Channel 3&4 Crossover High Pass Filter: 100Hz or 1200Hz
• Consumption with Signal Musical: 5A ~ 60A
• Dimensions (W x D x H): 6.50” x 4.45” x 2.00”
• Weight: 2.45 Lbs

Before Installing:

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
• Always use 100% Copper wire and good quality connectors. This guarantees reliability and performance.
• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution
