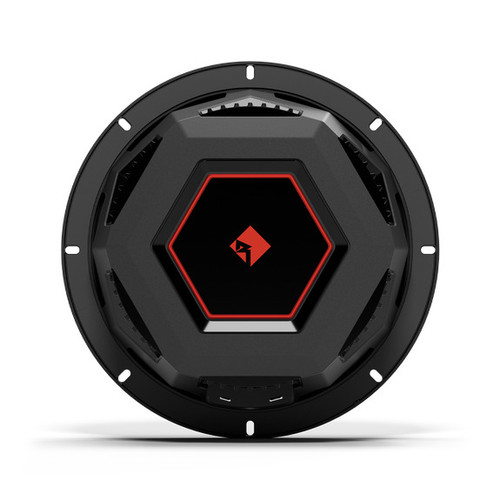

About: Rockford Fosgate PPROV2-8 Punch Pro 8" Midrange Car Speaker – 4 Ohm

The PUNCH PRO series are engineered to be the loudest speakers in the line up for SPL, purpose built for competition vehicles where maximum output matters most. Featuring ultra durable materials, they deliver relentless volume with uncompromising reliability. With multiple size and configuration options, PUNCH PRO delivers aggressive output, rugged durability, and the unmistakable PUNCH sound for performance focused builds. Sold in pairs (2 each)

Pro Output: Purpose-built with high-efficiency components, the PUNCH PRO Series is designed for those who demand extreme output without sacrificing durability or clarity. Engineered specifically for SPL environments, the midrange drivers and tweeters feature specialized materials and oversized motor structures to deliver maximum output under the most demanding conditions.

Performance Driven: The PUNCH PRO Series is engineered for extreme output, delivering maximum loudness without compromise. Precision-engineered phase plugs ensure accurate high-frequency projection, so every note cuts through, while oversized motor structures provide efficiency and extended playtime. Rated at 75W RMS and 150W peak, PUNCH PRO speakers deliver the loud, relentless performance you demand.

Built to Last: Every component. Every material. Chosen for strength. From reinforced polymer baskets and high-density cones to reinforced tweeter diaphragms, every part of the PUNCH PRO speaker is engineered to perform like a true workhorse. No matter how hard you push them, class-leading construction delivers relentless performance built to last.

UV Protection: Built for extreme conditions, PUNCH PRO speakers use UV-resistant materials in the cone, surround, and frame to ensure long-term reliability in sun-exposed environments. Treated paper cones, durable surrounds, and fatigue-resistant spiders are designed to withstand prolonged exposure without compromising performance.

Features:

• Designed for extreme SPL performance and maximum output
• Anodized CNC machined aluminum phase plug for sound dispersion and cooling
• Durable multi-roll treated cloth surround for high-output performance
• Lightweight curvilinear pressed pulp cone with felt ring for responsive output
• Large 2" pure copper voice coil boosts linearity and power handling
• Aluminum voice coil former maximizes heat dissipation and power handling
• Corrugated poly cotton spider for linear, stable control
• Symmetrical ultra-flexible tinsel leads woven into spider for balanced control
• Co-molded tin-plated brass terminals for corrosion resistant, quick connections
• Glass fiber reinforced PA66 frame resists heat, flex, and deformation
• Engineered Fit frames enable precise alignment for automotive applications
• High grade ferrite motor increases BL for higher efficiency and louder output
• Removable motor cover for fitment in tight applications
• Includes mounting hardware
• Includes cut-out template
• Grilles sold separately
• Sold in pairs (2 each)

Specification:

• Speaker Type: Midrange/Midbass
• Nominal Size: 8" (203.2 mm)
• Power Handling: 75 Watts RMS / 150 Watts Peak
• Nominal Impedance: 4 Ohms
• Frequency Response: 60Hz – 7kHz
• Sensitivity: 94.5 dB @ 1W/1M (97.5 dB @ 2.83V/1M)
• Voice Coil Diameter: 2.0" (51 mm)
• Fs (Resonant Frequency): 80 Hz
• Qts (Total Q Factor): 0.40
• Vas (Equivalent Volume): 0.37 cu. ft. (10.5 Liters)
• Xmax (Linear Excursion): 0.04" (1.0 mm)
• Xmax10 (Maximum Excursion): 0.10" (2.5 mm)
• Cutout Diameter: 7.03" (178.5 mm)
• Mounting Flange Diameter: 8.27" (210 mm)
• Mounting Depth (With Motor Cover): 3.0" (76.3 mm)
• Mounting Depth (No Motor Cover): 2.8" (71.7 mm)
• Front Clearance: 0.36" (9.2 mm)
• Removable Motor Cover: Yes
• Grille/Trim Ring Included: No
• Mounting Hardware Included: Yes
• Shipping Weight: 14.8 lbs (6.71 kg)

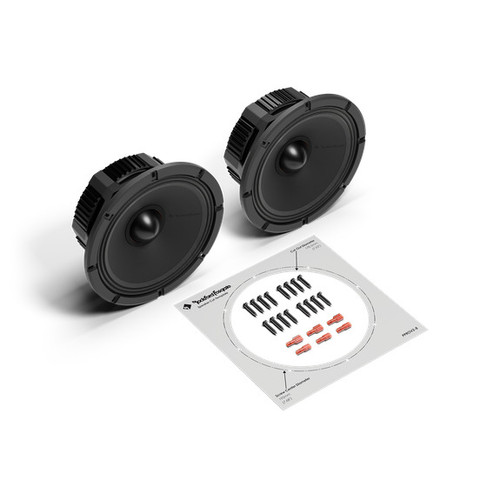

What's in the Box:

• (2) 4Ω 8" Speakers
• (8) #8 Phillips Screws, 25 mm long
• (3) 1/4” (0.25”) Quick Disconnect Terminals
• (3) 3/16” (0.187”) Quick Disconnect Terminals
• (1) Midrange Cutout Template
