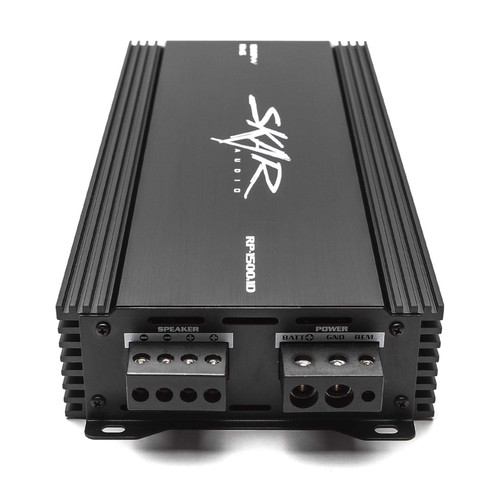

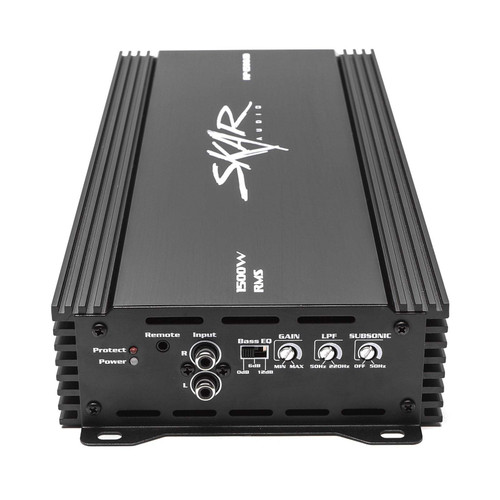

About: Skar Audio RP-1500.1D 1500W RMS Class D Monoblock Car Amplifier

Skar Audio designed the RP Series RP-1500.1D model with two goals in mind. Designing the most efficient class D monoblock the company had ever set out to build but at a more affordable price than ever before was no easy feat. With those goals came the RP-1500.1D, an extremely powerful, reliable, and efficiency class D monoblock subwoofer amplifier.

This amplifier is rated at a conservative 1,500 watts RMS power at a 1 ohm operating load, and is capable of putting out over 2,300 watts max power at 1 ohm. Featuring a high-speed MOSFET power supply, 4-way protection circuitry, advanced PCB board, and other internal high quality components, the RP-1500.1D shines when compared to anything in its class when it comes to power and reliability.

This amplifier comes with a remote subwoofer level control and bass knob allowing the user to have full control over their bass from the front of the vehicle. This makes for a great amplifier when looking for serious power to get your system loud, and will work great on a single subwoofer around 1,500 watts RMS or a pair of subwoofers around 600-800 watts each. Class D Circuitry design.

Product Highlights:

• Power Handling:
• RMS Power @ 1 Ω: 1,500W x 1 Ch (14.4v)
• RMS Power @ 1 Ω: 2,300W x 1 Ch (14.4v)
• Power & Ground Input Size: 4 Gauge
• Remote Bass Knob and Cable Included

Specifications:

• Type: Monoblock Car Amplifier
• Class: D
• Power Handling:
• Peak Power at 1 Ohm: 2300 Watts x 1 Channel (14.4v)
• RMS Power at 1 Ohm: 1500 Watts x 1 Channel (14.4v)
• RMS Power at 2 Ohms: 930 Watts x 1 Channel (14.4v)
• RMS Power at 4 Ohms: 550 Watts x 1 Channel (14.4v)
• Efficiency at 4 Ohms: 0.9
• Bridgeable: No
• Strappable: No
• Fuse Rating: 120 Amp
• MOSFET Type: High Speed MOSFET Power Supply
• Damping Factor: 150<
• Bass EQ (Boost): Yes (0‚+6 dB‚+12 dB)
• Output Channels: 1
• RCA Line Output: No
• Turn-On Circuit: Soft Turn-on Circuit
• Working Voltage: 8.5V - 16V
• Subsonic Control: Off - 50Hz
• Tri-Mode Capable: No
• Frequency Response: 20Hz - 250Hz
• Protection Built-in: Yes - 4-Way (Thermal‚Voltage‚Speaker‚DC)
• Power & Ground Inputs: 4 Gauge
• Signal-to-Noise Ratio: 85 dB
• Low Level Input (Gain): 6V - 0.2mV
• Low Pass Filter (Variable): 50Hz - 220Hz
• Power & Protection Indicators: Yes - LED Indicators
• Remote Bass Knob & Cable Included: Yes
• Dimensions (W x H x L): 6.20" x 2.25" x 14.37"

Real World Amplifier Dyno Test Results:

• Dynamic (Peak) Power at 1 Ohm: 1,873 Watts x 1 Channel (14.4v)
