Descriptions

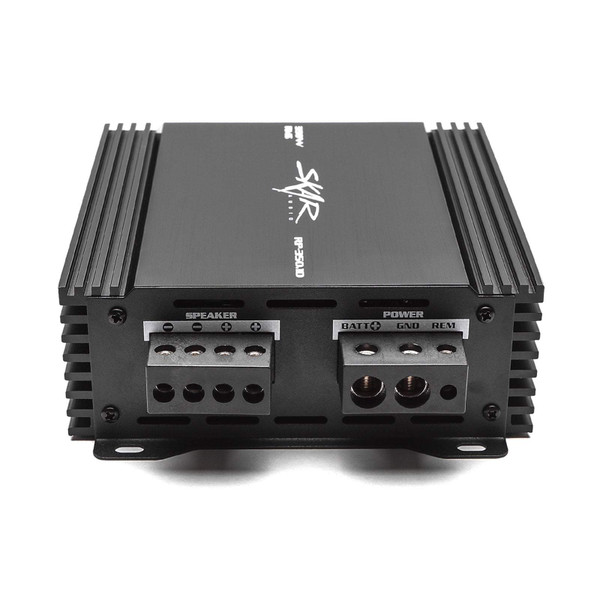

About: Skar Audio RP-350.1D 350W RMS Class D Monoblock Car Amplifier

Skar Audio engineered the RP-350.1D Class D monoblock subwoofer amplifier to be dominant in both power and reliability compared to anything else on the market in its' class and physical size. Designing the most efficient, well built, high quality amplifiers is where we start here at Skar Audio, and that is exactly what is delivered in this unit. The smallest of all RP series amplifiers, the RP-350.1D is the perfect solution for when you need versatility but are not willing to sacrifice power output.

The RP-350.1D is 1-ohm stable and utilizes a wide array premium internal components that make it extremely powerful and reliable - such as its high speed MOSFET power supply and advanced PCB board layout. Conservatively rated at 350 watts RMS power at a 1-ohm load, with the capabilities of reaching beyond 388 watts at max power output. This compact, small footprint amplifier, is by far one of the most affordable monoblocks we have ever released, and is great for powering a pair of subwoofers rated around 200 watts RMS each or a single subwoofer around 400 watts RMS.

In addition to all of the above features, the 4 gauge power and ground terminals found on the amplifier allow for maximum current flow and therefore higher power output and more efficient operation. Furthermore, you'll have full reign over your amplifier with the built-in user control panel, featuring a bass EQ switch (0, +6, +12dB), and variable adjustment tunings for gain level, low-pass filter, and subsonic filter.

Featuring 4-way protection circuitry, you'll have the peace of mind knowing that you are protected against damage to the amplifier for various reasons - including electrical shortage, over heating, low voltage, and more. This amplifier comes with a remote subwoofer level control (bass knob) allowing the user to have full control over their bass from the front of the vehicle.

Product Highlights:

• Power Handling:
• RMS Power @ 1 Ω: 350W x 1 Ch (14.4v)
• Peak Power @ 1 Ω: 388W x 1 Ch (14.4v)
• Power & Ground Input Size: 4 Gauge
• Remote Bass Knob and Cable Included

Specifications:

• Type: Monoblock Car Amplifier
• Class: D
• Bridgeable: No
• Strappable: No
• Fuse Rating: 30 Amp
• MOSFET Type: High Speed MOSFET Power Supply
• Damping Factor: 150<
• Bass EQ (Boost): Yes (0‚+6 dB‚+12 dB)
• Output Channels: 1
• RCA Line Output: No
• Turn-On Circuit: Soft Turn-on Circuit
• Working Voltage: 8.5V - 16V
• Subsonic Control: Off - 50Hz
• Tri-Mode Capable: No
• Frequency Response: 20Hz - 250Hz
• Peak Power at 1 Ohm: 375 Watts x 1 Channel (14.4v)
• RMS Power at 1 Ohm: 350 Watts x 1 Channel (14.4v)
• RMS Power at 2 Ohms: 250 Watts x 1 Channel (14.4v)
• RMS Power at 4 Ohms: 150 Watts x 1 Channel (14.4v)
• Efficiency at 4 Ohms: 0.9
• Protection Built-in: Yes - 4-Way (Thermal‚Voltage‚Speaker‚DC)
• Power & Ground Inputs: 4 Gauge
• Signal-to-Noise Ratio: 85 dB
• Low Level Input (Gain): 6V - 0.2mV
• Low Pass Filter (Variable): 50Hz - 220Hz
• Power & Protection Indicators: Yes - LED Indicators
• Remote Bass Knob & Cable Included: Yes

Real World Amplifier Dyno Test Results:

• Dynamic (Peak) Power at 1 Ohm: 452 Watts x 1 Channel (14.38v)
• Certified (RMS) Power at 1 Ohm: 378 Watts x 1 Channel (14.36v)
