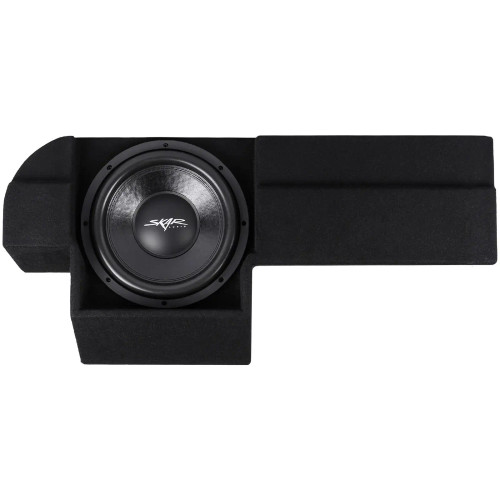

About: Skar Audio Single 12" 500W RMS Loaded Subwoofer Enclosure for Select 2019-Up Ram 1500 (5th Gen) Crew Cab Trucks

Skar Audio created this custom fit, ported, single 12" 800 watt loaded subwoofer enclosure specifically for 2019-2025 Ram 1500 Crew Cab Trucks (5th Gen Only - Does NOT Fit Classic or Quad Cab models). This loaded enclosure helps to eliminate the time spent trying to figure out which subwoofer will work best with an empty enclosure by offering you the best possible combination in one, easy to install solution.

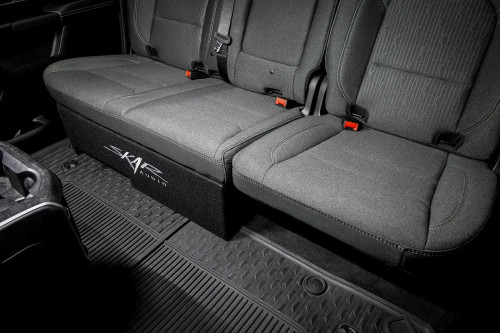

Designed to be a perfect fit under the rear seat of the super crew cab, this loaded enclosure provides world-class bass without relinquishing any additional space inside of your vehicle. The enclosure features one of our ever popular VD-12 D2 800-watt max power subwoofers, which is pre-loaded and wired up internally to a 1-ohm final impedance load at the speaker terminal wiring cup.

The ported, down-firing design of this enclosure produces elite bass while being responsive and dynamic across the entire low-end frequency spectrum. Additionally, it is finished in a premium black trunk-liner carpeting which contributes to a stunning appearance that blends in perfectly with your vehicle's interior.

Product Highlights:

• Included Subwoofers: x1 VD-12 D2 10-inch Dual 2-ohm
• Fits: 2019-2025 Ram 1500 (5th Gen) Crew Cab Trucks
• Type: Single 12" Ported Loaded Subwoofer Enclosure

Specifications:

• Type: Single 12" Ported Loaded Subwoofer Enclosure - Fits 2019-Up Dodge Ram 1500 Crew Cab
• Port Type: High Performance Slot Port Design
• RMS Power: 500 Watts
• Peak Power: 800 Watts
• Port Width: 2.00"
• Material Type: MDF
• Enclosure Type: Ported
• Subwoofer Size: 12"
• Wood Thickness: 5/8"
• Enclosure Style: Vehicle Specific
• Number of Ports: 1
• Enclosure Finish: Carpet
• Qty of Subwoofers: 1
• Material Thickness: 5/8"
• Final Impedance Load: 1 Ω
• Included Subwoofer(s): VD-12 D2
• Enclosure Finish Color: Black
• Number of Subwoofer Chambers: 1
• Final Impedance (With Box Rise): 1.9 Ohms
• Internal Air Space of Enclosure: 1.20 ft3

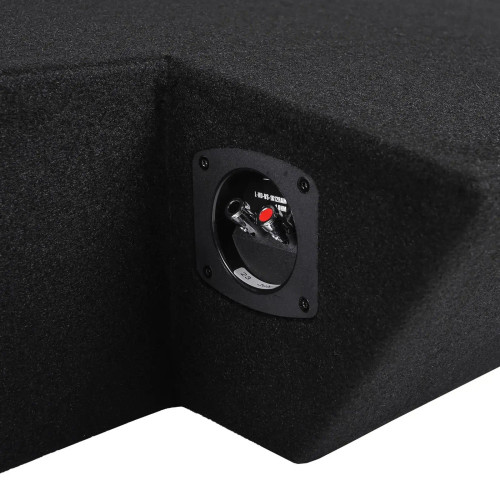

• Number of Terminal Cup Connections: 1
• Sensitivity: 86.7 dB
• Frequency Response: 25 Hz - 300 Hz
• Tuning Frequency of Enclosure: 38 Hz

Enclosure External Dimensions:

• Height: 9.40"
• Length: 36.00"
• Depth 1 (Bottom): 17.50"

Vehicle Applications:

• Ram 1500 (Crew Cab): 2019 – 2025
