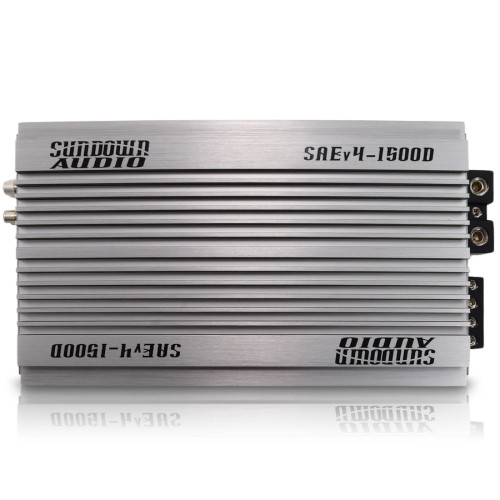

About: Sundown Audio SAEv.4-1500.1D 1500W RMS Class D Monoblock Amplifier
Back after popular demand, we introduce to you, the SAEv4 series of amplifiers from Sundown Audio. Many customers have stated they wanted us to bring back a budget friendly Korean style amplifier like the very popular SAEv1 and SAEv2 series of amplifiers. We listened and did just that. Sporting an all new chassis and heatsink, we’ve added 33% more aluminum, which takes a dramatic approach to help keep your amplifier cool during heavy loads.
The all new SAEv4 amps are Class A/B for the multi channels and Class D for the Mono Channels. We also decided to stick with the newest Half bridge technology available to keep the amplifiers as small as possible and still provide the cleanest, and strongest signal power you desire. Those of you who are wanting the price point of Full bridge amplifiers and the stability of half bridge amplifiers, the SAEv4 series is right up your alley.
The Sundown Audio SAEv4-1500D amp more than just big bass - it's a powerful upgrade for any car audio enthusiast wanting superior sound quality and reliability. This high-performance half-bridge class D amplifier ensures powerful, detailed output. The variable phase, lowpass and subsonic filters provide the control you need - for the sound you love.
Featuring robust protection circuitry against thermal, voltage, speaker short, and DC-offset issues, along with power and protection indicators, this amplifier guarantees long-lasting durability, while the heavy aluminum heat sink enhances thermal control, preventing overheating during extended use. The included wired remote with clipping indicator provides real-time monitoring and output control!
- Power Handling:
- 1,500 x 1 @ 1 ohms RMS
- 800 x 1 @ 2 ohms RMS
- 450 x 1 @ 4 ohms RMS
- Class D amplifier

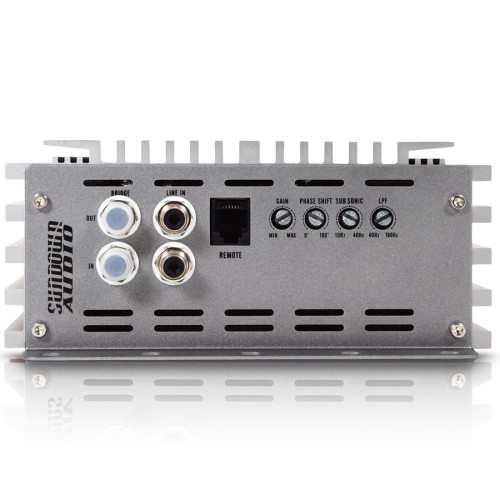

- 12dB variable low pass filter: 40Hz - 180Hz
- 12dB subsonic filter: 10Hz – 40Hz
- Phase shift control 0-180 degrees
- Power, clipping & protection indicators included
- Heavy aluminum heat sink for improved thermal control

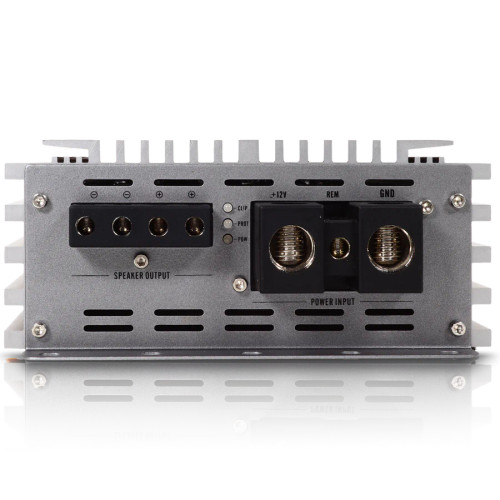

- Thermal, voltage, speaker short, and dc-offset protection circuitry
- Wired remote control with clipping indicator
- Input Sensitivity 6V Max
- Dual MOS-FET PWM Power Supply
- Signal / Noise Ratio : 92DB
- Operation Voltage : DC 10.5V - 15.5V Power Input
- Recommended Fuse : 140 Amps
- Dimensions (L x W x H): 12.48” x 6.3” x 2.75”
