Descriptions

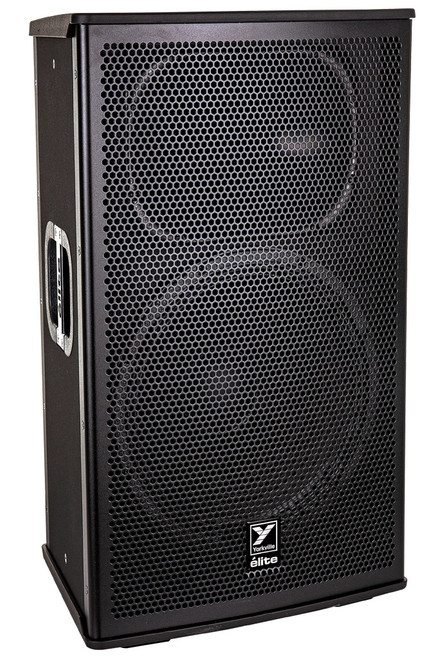

About: Yorkville EF15P Elite 15” Powered Loudspeaker

The EF15P is a 2-way active loudspeaker with innovative processing. Use it as a front-of-house speaker, or self-contained compact PA for paging and playback with no mixer required.

The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4” TRS line level connections. An internal mixer can be engaged to add 1/8” TRS and 1/4” TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

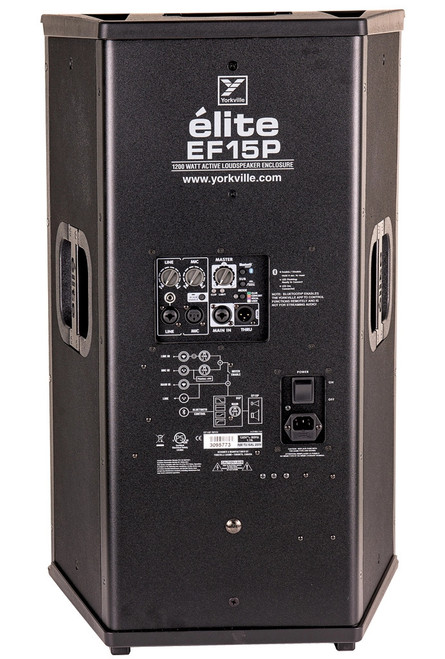

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn’t required when using a subwoofer, and pair a Bluetooth® device to control speaker parameters using the free companion app.

A 900-watt amplifier powers the 15-inch woofer, and a 3-tier 300-watt amplifier drives the 3-inch horn. An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs.

Class D amplifiers, neodymium speaker magnets, and Baltic birch construction keep the total weight below 65 pounds while maintaining classic Elite ruggedness and durability.

Features:

• 2400 W Peak Power (1200 W Program)
• 15” Long-Excursion Cast-Frame Neodymium Woofer with 3” Voice Coil
• 3” Titanium-Diaphragm Compression Driver
• Multiband DSP Limiting with 4 Preset Performance Modes
• iOS and Android App for Added Cabinet Control
• ABS-Coated Birch Plywood Cabinet Construction
• Made in Canada

Specifications:

• System: Type Powered Loudspeaker
• Power Rating: 2400 W Peak (1200 W Program)
• Max SPL: 133 dB Peak (127 dB Continuous)
• Frequency Response: 43 Hz - 16 kHz
• Crossover Frequency: 1100 Hz
• HF Driver(s): 3" Voice Coil (Titanium Diaphragm)
• HF Dispersion (°H x °V): 60° x 40°
• LF Driver(s): 15" Neodymium Magnet with 3" Voice Coil
• HF Power Amplifier (Watts): 300 W
• HF Amplifier Type: 3-Tier High Headroom
• LF Power Amplifier (Watts): 900 W
• LF Amplifier Type: Class D
• In / Out Connections: 1 Combi-Jack (XLR / 1/4") Main Input, 1 XLR-M Thru
• Inputs: 1 XLR Microphone Input, 1 Combi-Jack (XLR / 1/4"), 1/8" Line Input
• Input Impedance (Bal/UnBal): 95KΩ / 90KΩ
• Input Sensitivity (Vrms Sine): +4 dBv / 1.23 V
• Controls: Mixer Enable, DSP Mode (Club, Concert, Vocal, Custom), Bluetooth Enable, Sub (100 Hz HP Filter)
• Level Controls: Mic Input Level, Line Input Level
• Master Volume Control: Yes
• Bar Handles: 3 (2 Side, 1 Top)
• Flypoints: 8 (2 Top, 2 Bottom, 2 Each Side), 2 Pullback
• Flying Hardware: 1/4 - 20
• Pole Mount Adapter: 1 (Bottom)
• Enclosure Materials: ABS Coated Baltic Birch Plywood
• Grille: Perforated Metal
• Dimensions (DWH): 14" x 18.5" x 30" (35.5 cm x 47 cm x 76 cm)
• Weight: 72 lbs / 33 kg

*Specifications subject to change without notice
