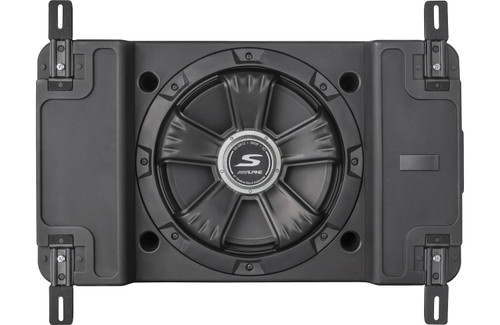

About: Alpine SS-SB12 Single 12” 300W RMS S-Series Shallow Preloaded Subwoofer Enclosure
With an ultra-shallow enclosure design and powerful sound output, the 12" S-Series Shallow Preloaded Subwoofer Enclosures give you the best of both worlds in size and sound.
Designed for Tight Spaces
Now you don’t have to choose between bass and space! Alpine’s 12” S-Series Shallow Preloaded Subwoofer Enclosure measures at a minimal 5.25” deep to deliver clean and reliable bass performance in most vehicle applications.
Powerful Performance The SS-SB12 features a 2” voice coil inside of a lightweight yet powerful neodymium magnet for up to 300W RMS of power handling. This combined with a front-mounted magnet motor allows the enclosure to have an extremely shallow footprint while maintaining powerful bass performance.
Adjustable Mounting Options
Four adjustable, foam-padded steel mounting brackets allow for flexible installation in many areas and vehicle types, while the foam reduces vibration during play for optimized performance.
Precise Bass Control
Alpine's Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in 22mm of peak-to-peak linear excursion for maximized output.
Optimal Power Match
With dual voice coils wired in parallel for a 2-ohm load, the Alpine S-Series 12" Shallow Subwoofer Enclosure is optimized to perform with Alpine's S2-A55V, KTA-200M, or KTA-30MW amplifiers.
Features:
- Sealed downward-firing enclosure with one 12" S-Series shallow subwoofer
- Water-resistant polymer enclosure
- Polypropylene cone
- 2-ohm total impedance
- Power handling: 300 watts RMS (600 watts peak)
- Frequency response: 30-200 Hz
- Dimensions: 22.25"W x 5.25"H x 13.125"D
What's in the Box:
- Subwoofer enclosure loaded with one 12" S-Series subwoofer
- 4 Mounting brackets
- 4 Foam pads with adhesive backing
- Eight 3/4" screws
- Four M5x12mm machine screws
- 4 Lock-washers
- Installation manual (Eng/Fren)
- Warranty information
- Product registration information
- Safety notice
