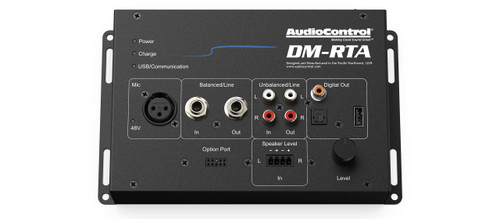

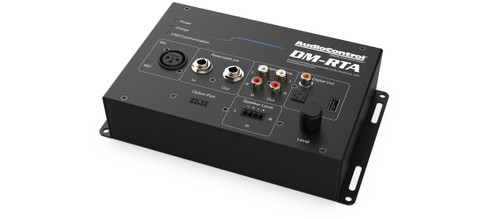

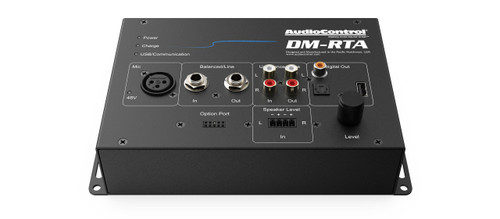

AudioControl DM-RTA Real Time Analyzer and Multi-Test Tool

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$1,149.95

SKU:: DM-RTA
Condition:: New
Availability:: Usually Ships in 1-2 Days
Shipping:: Calculated at Checkout

AudioControl DM-RTA Real Time Analyzer and Multi-Test Tool

$1,149.95

Description
Shipping & Returns

Description

About: AudioControl DM-RTA Real Time Analyzer and Multi-Test Tool

Building from a legacy of trusted professional audio measurement products, the DM-RTA™ brings the vital tools you rely on to one indispensable interface. Populated with every connector we could think of, and coupled with the new DM-RTA app, AudioControl’s DM-RTA helps you take your car audio, marine audio or home theater installations to new levels of perfection and control. The DM-RTA connects to a Mac or PC via USB, or to a phone or tablet via Bluetooth using the AC-BT24 Bluetooth Streamer/Programmer (available separately).

DM-RTA App

The DM-RTA isn’t just an RTA. Accessible from the DM-RTA app are five modules, including Voltage Meter, RTA (1/3, 1/6, and 1/12 octave), SPL Meter, Polarity Checker and a fully functional Oscilloscope. Test and measure nearly every signal imaginable from acoustical, to line level, and speaker level. Balanced and unbalanced line level inputs allow the DM-RTA to be inserted into your signal chain to verify optimal signal from source to speakers. This is the last test tool you’ll ever need.

Features:

Test and Measure Any Signal
Balanced Line Level Inputs and Outputs
Unbalanced Line Level Inputs and Outputs
Speaker Level Inputs (handles up to 400 watts)
Microphone Input with 48V Phantom Power (microphone sold separately)
Microphone presets (for CM-10, CM-20 & C550H)
Digital and USB Outputs
Connect to PC/Mac, Phone or Tablet
Option Port for Bluetooth Connectivity
Battery Powered and Compact for Portability

Specifications:

Inputs

1 x Balanced (Input Impedance 3.24kΩ)
1 x Unbalanced (Input Impedance 3.24kΩ)
1 x Microphone (Input Impedance 10kΩ)
1 x Speaker Level (Input Impedance 16.24kΩ)
Max Low Level Input Voltage: 8 Vrms
Max High Level Input Voltage: 40 Vrms

Outputs

1 x Balanced (Output Impedance: 51Ω)
1 x Unbalanced (Output Impedance: 51Ω)
1 x Coax Digital (Output Impedance: 75Ω)
1 x Toslink
1 x USB
Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

General

Power Supply:
Battery Life: ~5 Hours
Dimensions (W x D x H): 8”W x 4.8”D x 2.4”H
Weight: 2.6lbs (1.2kg)

What's in the Box:

DM-RTA
USB Cable
Power Supply
Manual
Warranty
