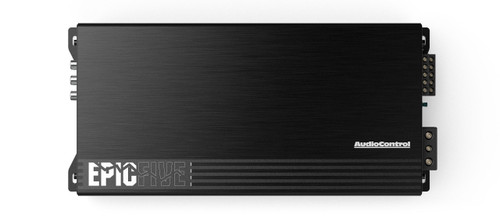

About: AudioControl EPICFIVE EPIC Series 5-Channel Car Amplifier — 75W RMS x 4  + 300W RMS x 1

The AudioControl EPIC Series 5-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design, all at an unbeatable price. Engineered with a high-current Class D design, ensuring maximum power output while maintaining efficiency. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality for the price and is the only AudioControl amplifier to include a bass knob for easy control.

Features:

• Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.
• 0-12dB Variable Bass Boost Q: Selects the frequency to boost

• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.

• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.

• 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).

• Smart Auto Reset Protection Circuit:
  Included ACR-E Remote Control knob
  • Output Over-Current Protection (OCP)

  • Input Over-Voltage Protection (OVP)

  • Input Under-Voltage Protection (UVP)

  • Output DC-Offset Protection (DCP)

  • Over-Temperature Protection (OTP)
• Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.
• THE EPICENTER LINK: Connects to EPIC (Power & Remote) to simplify the installation of The Epicenter

Specifications:

• 5-channel car amplifier
• 75 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms
• 150 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
• 300 watts RMS x 2 bridged at 4 ohms + 700 watts RMS x 1 at 1 ohm
• Class D amp technology
• Frequency response: 10-22,000 Hz
• CH1-CH4:
• Variable high-pass filters (Off/50-500 Hz, 12 dB/octave)
• Subwoofer channel:
• variable low-pass filter (40-180 Hz, 12 dB/octave)
• variable subsonic filter (Off-50 Hz, 12 dB/octave)
• EPICBoost™ Variable Frequency Bass Boost (0-12 dB at 30-80 Hz)
• ACR-E wired remote control included
• Power harness for accessory preamp included
• Compatible with AudioControl line output converters and Epicenter bass enhancers
• Pre-installed 1A fuse included for accessory power connection
• Preamp inputs only
• Wiring, fuse, and hardware not included with amplifier:
• 4-gauge power and ground leads and an 150A fuse recommended
• Dimensions (W x H x D): 13.63" x 2.01" x 6.09"

What's in the Box:

• 5-Channel amplifier (installed 1A mini fuse for Link output)
• ACR-E Remote level control
• 16' Remote level control cable (RJ-12 connectors on both ends)
• 39" Epicenter link cable (4-pin connector on one end/ 3-pin Epicenter power & ground connector on other end)
• Four 5/8" screws
• Four 3/8" screws
• Three Allen keys (3mm/ 2.5mm/ 2mm)
• Spare 1A mini fuse
• Quickstart guide
