AudioControl LC2i 2 Channel Line Output Converter

have questions?

+1 (416) 745-1021

Ask an Expert

Guaranteed Fitment

Always the correct part
In-House Experts

We know our products
Installation Assistance

We're happy to help
Canada Wide Delivery

Free shipping on orders over $200*

AudioControl

AudioControl LC2i 2 Channel Line Output Converter

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$189.95

$139.99

SKU:: LC2i
Condition:: New
Availability:: Usually Ships in 1-2 Days
Shipping:: Calculated at Checkout

AudioControl LC2i 2 Channel Line Output Converter

$189.95

$139.99

Description
Shipping & Returns

Description

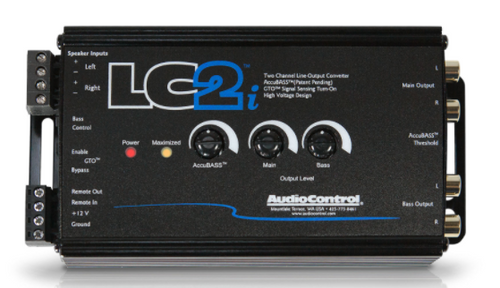

About: AudioControl LC2i 2 Channel Line Output Converter

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

Features:

Two channels of Active speaker level inputs – Accept 400 watt signals per channel
Fixed and variable outputs with discrete level controls
AccuBASS® processing for correction of bass roll-off
GTOTM Signal Sensing
Input For Optional Remote Level Control
Compact design

FAQ

Does the LC2i require power? Yes, the LC2i is an active line output converter and should be connected to the battery for constant 12 V and to your common ground for after market amps and processors.
Do I need to find a remote turn on lead? No, the LC2i has GTO Signal Sensing, which will turn the unit on when it detects signal at the input from your factory amp/powered head unit.
For more in depth installation help, check out our FAQ on Facebook (Facebook membership not required): LC2i FAQ

Specifications:

Inputs

Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 400W per channel at 4Ω
Input Impedance: 20kΩ

Outputs

Preamp Outputs: 2 (2 channels main, 2 channels bass)
Maximum Output Level: 9.5Vrms/13V peak
Output Impedance: 150Ω

Performance

Total Harmonic Distortion: 0.01%
Signal to Noise: >110dB
Frequency Response: 10Hz-100kHz ±1 dB

Control

Remote In
12VDC Remote Out (always active when unit is on)

General

Current Draw: 150mA
Recommended Fuse Rating: 1A

Weights & dimensions

Dimensions: 5.4″L x 3.25″D x 1.5″H (6.5″L including mounting brackets)
Weight: 1.0lbs (0.5kg)

What's in the Box:

LC2i
Speaker and Power connectors
Manual
Warranty Card
