Descriptions

About: BlackVue B-130A Dashcam Battery for Parking Mode – 30 Hour Parking Mode

Enhanced Safety Technology with Lithium Iron Phosphate (LifePO4)

Superior stability in extreme temperatures Integrated Fuel Gauge IC for precise charge and discharge tracking

• 7,500mAh / 96Wh Up to 30 hours runtime
• Superior Safety Fire & explosion resistant, 2000+ cycles
• 3X Longer Lifespan than Lithium-Ion / Nickel batteries

High Temperature Protection

Based on the temperature sensor built into the Fuel Gauge IC (Integrated Circuit) of B-130A, if the temperature exceeds 80°C, a beep warning sound and LED flashing will be triggered, and charging will be stopped. Once the temperature drops below 70°C, charging will automatically resume.

Features:

• High-capacity Battery for Parking Mode
• 50-minute charge*/30-hour operation**

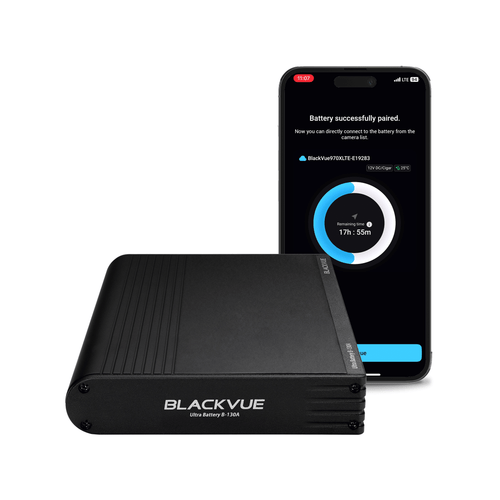

• Wireless connectivity for status check via BlackVue App
• Fuel Gauge Integrated Circuit for accurate readouts
• Cloud Battery: pair with your Cloud-connected BlackVue to check the status from anywhere.
• Capacity: 12.8 V / 7,500 mAh / 96 Wh Input: 12 V-17 V. Output: 11 V-14.5 V / 2 A (max) (*) When hardwired. (**) Based on a dash cam that consumes 3W.

Specifications:

• Capacity: 12.8 V / 7,500 mAh / 96 Wh
• Product Dimensions: Black / 152.7(W) × 206(L) × 33.6(H) mm/ 1,520g 6.01(W) × 8.11(L) × 1.32(H) inch/ 3.35lb
• Giftbox Dimensions: White / 188mm(W) X 236.5mm(L) X 94mm(H)/ 2.14KG 7.4inch(W) X 9.31inch(L) X 3.7inch(H) / 4.72lb
• High Temperature Protection:
• Normal Charging: Under 70°C (158°F)
• Charging Stops: Over 80°C (176 °F)
• Storage Temperature: -20 °C − 45 °C (-4 °F − 113 °F)
• Backup Battery: LiFePo4
• Specifications
• Input Power:
• 12V system:
• Cigarette lighter plug: 11 V–18 V / 7.2 A (max)
• Hardwired: 11 V–18 V / 13.0 A (max)
• 24V system:
• Cigarette lighter plug: 22.5 V–30 V / 3.6 A (max)
• Hardwired: 22.5 V–30 V / 6.4 A (max)
• Power Consumption Hour:
• Cigarette lighter plug: 14.2 V / 5 A
• Hardwired: 14.2 V / 9 A
• Cigarette lighter plug (standard 5 A charging): Approx. 90 mins
• Hardwired (rapid 9 A charging): Approx. 50 mins
• Approx. 30 hours (based on a single dashcam that consumes 3 W)
• Output current / Quiescent current: Dashcam port: 11 V–14.2 V / 2 A (max)
• Others: USB port: 4.75V–5.2 V / 2A (max)

What's in the Box:

• BlackVue Ultra Battery (B-130A)
• Cigarette lighter power cable
• Hardwiring cable
• Dashcam hardwiring power cable
• Fuse tap kit (3 types)
• Fuses
• 2 velcro strips
• User Manual
