Descriptions

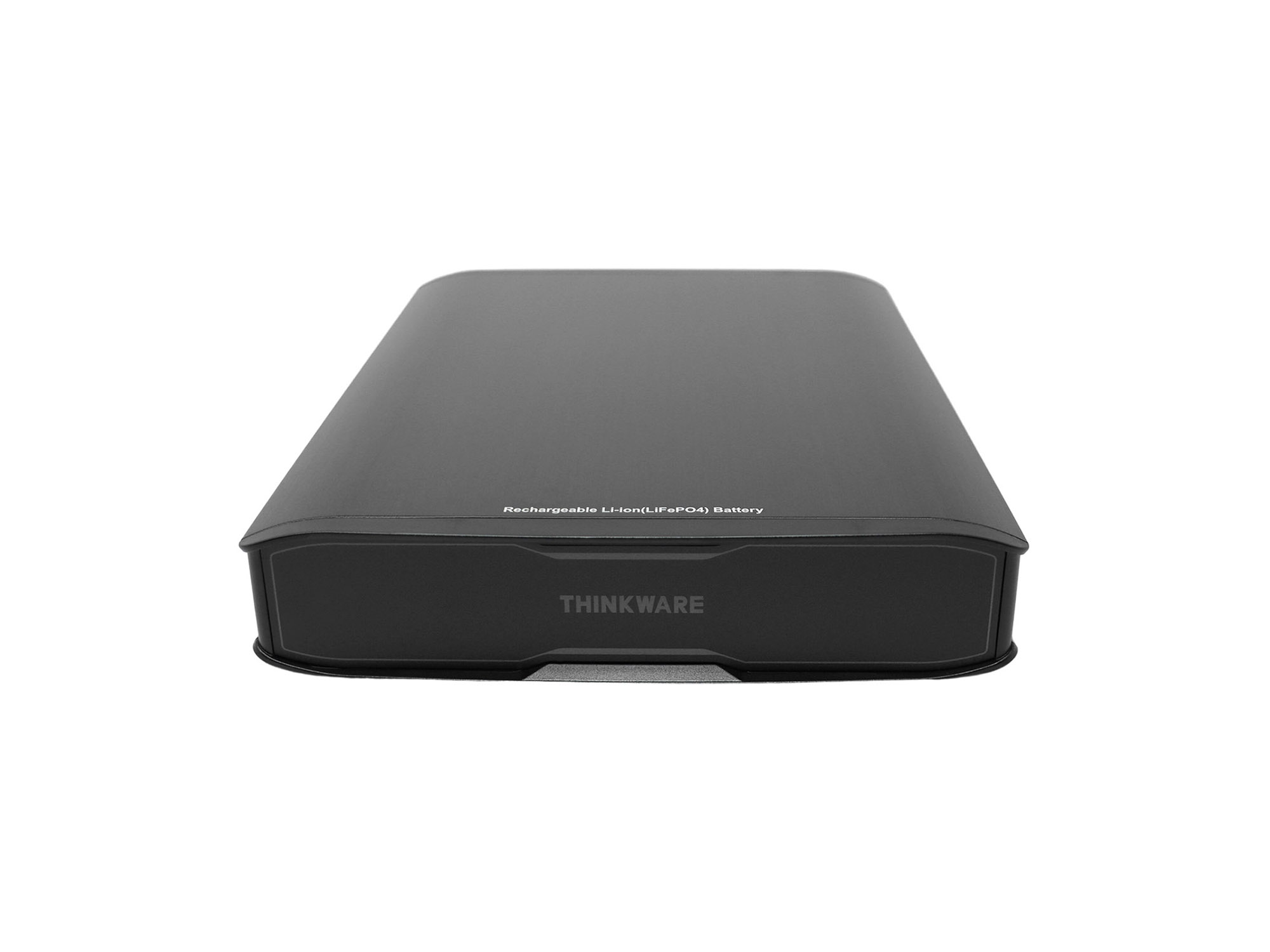

About: Thinkware iVOLT-XTRA External Dash Cam Battery – Provides up to 27 hours in Motion Detection Parking Mode

Increase the duration of the Parking Surveillance mode of your THINKWARE Dash Cam with the iVolt Xtra External Battery [BAB-95].

• Allows dash cam to remain in Parking mode for up to 37 hours, or 27 hours with a rear cam added
• Fully recharged in 45 minutes while driving.

Compatible with all THINKWARE Dash Cam models.

The External Battery requires Hardwiring Cable (sold separately) installation. Hardwiring Cable is included in some dash cam bundles. Please check when purchasing.

iVolt Mini (Hardwire) Installation

The iVolt Xtra Battery Pack is a hardwired product. It is connected to the Fuse Box directly, to charge while driving.

Specifications:

• Input Voltage / Current:
• 1Standard Charging: 12.0 V -15.5 V / Max 6.5 A
•  Fast Charging: 12.0 V -15.5 V / Max 13.0 A
• Output Voltage / Current:
• Dash Cam: 11.0 V – 14.2 V / Max. 2.0 A
• 2USB: 5.0 V / Max 2.0 A
• Charging Voltage / Current:
• Standard: 14.2 V / Max 4.5 A
• Fast: 14.2 V / Max 8.5 A
• Charging Time (Approx.):
• Standard: 100 minutes
• Fast: 55 minutes
• Usage Time (Approx.): 1ch - 37 hours / 2ch - 27 hours
• Battery: LiFePo4 (Lithium iron phosphate)
• Battery Capacity: 12.8 V 7500 mAh
• Dimensions (WxDxH): 155.0 x 215.0 x 35.0 mm (6.10 x 8.46 x 1.38 in)
• Weight: 1.589 kg (3.504 lb)
• Operating Temperature Charging: 0°~45°C (32°~113°F)
• Discharging: -10°~60°C (14°~140°F)
• (Cell skin temperature cannot exceed 80°C)
• Storage Temperature: -20°C ~ 60°C (-4°~140°F)
• Storage Humidity Range: 65% ±20%RH
• (Recommended to store 23 ±5°C for long term)
• TWA-EXBH2

What's in the Box:

• iVolt Xtra External Battery
• Input Cable
• Output Cable
• Communication Extension Cable
• Fuse Tap (3 Types)
• Fuse (4 pieces of 20A fuses: 2x Mini, 1x ATO and 1x Micro)
• Velcro Tape (2 pieces)
• Quick Start Guide
