Descriptions

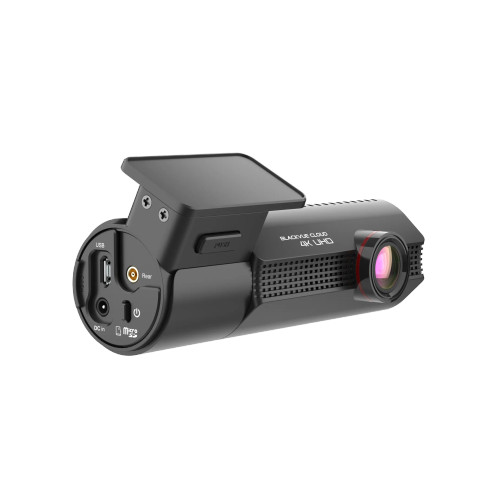

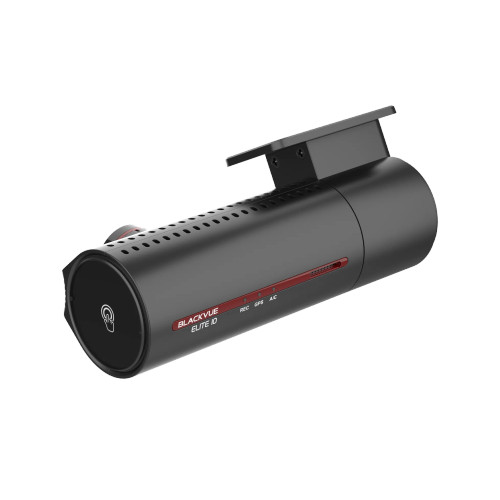

About: BlackVue ELITE10-2CH-64 2-Channel 4K Dash Cam with Built-In Wi-Fi, Sony Starvis 2 Sensors & HDR

Dual 4K Clarity & Front HDR

ELITE 10 offers improved dash cam performance with advanced HDR technology. It is designed to provide clear and well-balanced video recordings in both bright sunlight and low-light situations.

• Top-of-the-line Sony IMX678 STARVIS 2 image sensors in both the front and rear cameras, recording at 3840×2160 pixels resolutions.
• HDR support on on the front camera. BlackVue HDR also reduces motion blur and improves detail, making license plates easier to read on moving vehicles.
• Both cameras integrates an 8-element f/1.7 aperture lens with great light-gathering capability. The lenses cover a 146-degree angle wide field of view with minimal distortion.

Up to Over 12 Months of Protection!

In Power Saving Mode, the dash cam minimizes power consumption by going into standby, then wakes up on impact and goes back to standby mode after 1 min recording.
Provides several weeks of protection when hardwired to a car with a healthy battery and up to several months of protection when paired with BlackVue Ultra Battery (B-130A).

• Ultra-Low Current Draw: Under 1 mA! It’s actually under 0.5 mA. Literally hundreds of times less than a dash cam’s standard mode draw.
• Ultra-Fast Wakeup Time: Under 1 second! Starts recording as soon as an impact is detected.
• Minimized heat: in standby, ELITE 10 generates almost no heat, so it operates reliably even in hot weather.

The Best Daily Protection with Pre-Event Recording

• Motion Detection: records a 1-minute buffered video whenever a motion is detected by the front or rear camera. Motion detection areas can be set manually in the app.
• Time Lapse: records constantly at 1 frame per second so each 1 minute video covers 30 minutes of real time. Recommended if you routinely park in busy areas.

Comprehensive Event Detection

Detects and records driving impacts, parking impacts, sudden acceleration, hard braking, sharp turns, and overspeeding using the built-in G-Sensor and GPS.

Your Most Important Clips are Protected

Like every dash cam, ELITE constantly records in a loop. When the microSD card storage is full, older clips are automatically overwritten by newer footage.
With its Event File Protection function, ELITE ensures that critical footage is not overwritten by normal driving clips.

Hassle-Free Installation

• Mount the front and rear cams
• Plug the power and video cables
• Start driving

Stealthy, Reliable and Functional

BlackVue ELITE 10 is designed with stealth, durability and functionality in mind.

Remote Live View, Push Notifications, Live Event Upload

BlackVue Cloud offers peace of mind with unique features.

• Two ways to connect: use the BlackVue LTE Connectivity Module or any 3rd-party Wi-Fi hotspot to connect your BlackVue to the Cloud.
• 5GB free storage: use your free 5GB storage to store Live Event Upload videos or remotely select and back up videos stored on the dash cam’s microSD card.

Specifications:

• Channel: 2CH
• Highlights: 4K UHD HDR + 4K UHD, 2.4-5GHz Wi-Fi, Cloud (data not included), Power Saving Parking Mode
• Product Dimensions / Weight:
• Front: Length 129.7mm (5.12in) x Width 40mm (1.58in) x Height 55.3mm (2.18in), 195g (0.43 lb)

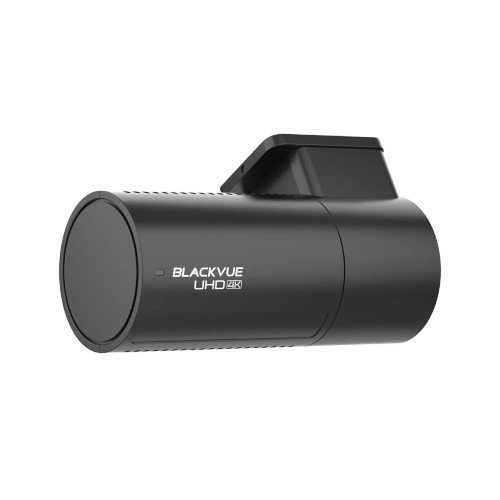

• Rear: Length 67mm (2.64in) x Width 29mm (1.14in) x Height 39.1mm (1.54in), 40g (0.09 lb)
• Rear Camera Connection: Coaxial cable
• Memory Support: microSD card up to 1TB
• Smart Event Recording:
• Driving Impact
• Parking Impact
• Overspeed
• Hard Acceleration
• Hard Braking
• Hard Cornering
• (Including 10 sec. Pre-Event buffer)
• Parking Mode:
• Power Saving ( < 1mA)
• Motion Detection
• Time Lapse
• (Parking Mode add-on required)
• Parking Mode Event Voice Notifications: YES
• Protection Systems:
• Timer Cut-Off: 1~48H
• Low Voltage Cut-Off: Passenger Vehicle 11.8~12.5V or Heavy Vehicle 22.8~24V
• High Temperature Cut-Off (75°C)
• Imaging Sensor: Front & Rear: STARVIS 2 CMOS Sensor (IMX678)
• Viewing Angle: Front & Rear: Diagonal 146° , Horizontal 125°, Vertical 68°
• Resolution Frame Rate :
• Front & Rear: 4K UHD@30fps (Dual 4K)
• * Frame rate may vary during Wi-Fi streaming.
• Video Codec: H.265 (HEVC), H.264 (AVC)
• Image Quality and Bitrate Front/Rear:
• Extreme (H.265): 60+30 Mbps
• Extreme (H.264): 40+30 Mbps
• High (Default): 30+30 Mbps
• Medium: 20+20 Mbps
• Low: 10+10 Mbps
• Format Free: Adaptive Format-Free (US 10,922,270 B2)
• Event File Overwrite Protection: Up to 50 event files can be protected from being overwritten
• SD Card Failure Alert: YES
• Scheduled Reboot: YES
• Video File Extension: MP4
• Wi-Fi: Built-in (802.11ac – 2.4-5GHz)
• Cloud Compatible: YES
• GPS: Built-in (Dual Band : GPS, GLONASS)
• Microphone: Built-in
• Speaker: Built-in
• Impact Sensor: 3-Axis Acceleration Sensor
• LED Indicators:
• Front: Recording status, GPS connectivity, A/C (App/Cloud) connectivity
• Rear: Power LED
• Button:
• Power Button: Short press to turn on / Long press to turn off.
• Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
• Bluetooth Remote Button (Optional): Manual Recording
• Operation Temperature: -20 °C − 65 °C (-4 °F − 149 °F)
• Storage Temperature: -20 °C − 80 °C (-4 °F − 176 °F )
• High Temp Cut Off: Approx. 75 °C (167 °F)
• Backup Battery: Built-in supercapacitor
• Input Power: DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
• Power Consumption:
• Normal Mode (GPS On/2CH): 510mA
• Parking Mode (GPS Off/2CH): 380mA
• Power Saving Mode: Under 12mW (0.012W) (Avg. <1mA / 12V)
• * Actual power consumption may vary depending on use conditions and environment.
• Certifications:
• Front: Telec, IC(ISED), CE, FCC, RCM, RoHS, WEEE
• Rear: FCC, IC(ISED), CE, RoHS, WEEE
• Software:
• BlackVue Viewer: Windows 7 or higher, Mac Sierra OS X (10.12) or higher
• FLEETA Web Viewer: Chrome 71 or higher, Safari 13.0 or higher
• App:
• BlackVue App, FLEETA App
• * Android 10.0 or higher, iOS 15.0 or higher
• Others: Adaptive Format-Free File Management System
• Bluetooth: Built-in (V2.1+EDR/5.3)
• LTE: External (with optional LTE Module)

What's in the Box:

• Front Camera
• Rear Camera
• USB-C Power Cable
• Hardwiring Cable
• USB-C 12V Adapter
• Rear camera connection cable
• MicroSD Card
• Double-sided tape for the mounting brackets
• Pry tool / Trim Remover
• Cable clips (5 EA)
• Alcohol Pad
