Descriptions

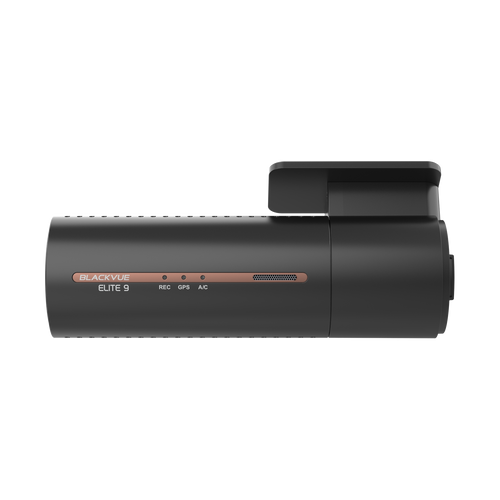

About: BlackVue ELITE9-2CH-64 4K UHD 2-Channel Front Dash Cam with 2K Rear Camera with Built-In Wi-Fi, Sony Starvis 2 Sensors & HDR

Redefined 4K Clarity with Dual HDR

• ELITE 9 offers improved dash cam performance with advanced HDR technology. It is designed to provide clear and well-balanced video recordings in both bright sunlight and low-light situations.
• 4K UHD + 2K QHD: Top-of-the-line Sony IMX678 STARVIS 2 image sensors in the front camera and IMX675 STARVIS 2 in the rear camera, recording at respectively 3840×2160 and 2560×1440 pixels resolutions.
• Dual HDR: HDR support on both front and rear cameras. BlackVue HDR also reduces motion blur and improves detail, making license plates easier to read on moving vehicles.
• The front camera integrates an 8-element f/1.7 aperture lens with great light-gathering capability and the rear camera’s 7-element f/2.0 aperture lens provides a great mix of depth of field and low-light performance. The lenses cover a 146-degree (front) and 142-degree (rear) angle wide field of view with minimal distortion.

12-Bit Capture, HEVC Compression

• 12-Bit: ELITE 9 Series utilizes a professional-grade 12-bit 4K sensor, which captures a massive palette of over 68 billion colors at the source. This rich data is intelligently processed, resulting in a final 8-bit video file that boasts superior clarity.
• ELITE 9 Series utilizes HEVC (H.265) compression, which is the leading standard in 4K recording and broadcasting. The primary benefit of HEVC is that it ensures the best video quality at any bitrate.

Up to Over 12 Months of Protection!

In Power Saving Mode, the dash cam minimizes power consumption by going into standby, then wakes up on impact and goes back to standby mode after 1 min recording. Provides several weeks of protection when hardwired to a car with a healthy battery and up to several months of protection when paired with BlackVue Ultra Battery (B-130A).

• Ultra-Low Current Draw: Under 1 mA! It’s actually under 0.5 mA. Literally hundreds of times less than a dash cam’s standard mode draw.
• Ultra-Fast Wakeup Time: Under 1 second! Starts recording as soon as an impact is detected.
• Minimized heat: in standby, ELITE 9 generates almost no heat, so it operates reliably even in hot weather.

The Best Daily Protection with Pre-Event Recording

2 standard Parking Mode settings.

• Motion Detection: records a 1-minute buffered video whenever a motion is detected by the front or rear camera. Motion detection areas can be set manually in the app.
• Time Lapse: records constantly at 1 frame per second so each 1 minute video covers 30 minutes of real time. Recommended if you routinely park in busy areas.

Comprehensive Event Detection

Detects and records driving impacts, parking impacts, sudden acceleration, hard braking, sharp turns, and overspeeding using the built-in G-Sensor and GPS.

Always Get the Full Picture!

With buffered recording, Event clips always include the action that led to the triggering event.

• All Event clips last 1 minute and start 10 seconds before an incident, so you can clearly identify who’s at fault.

Your Most Important Clips are Protected

Like every dash cam, ELITE constantly records in a loop. When the microSD card storage is full, older clips are automatically overwritten by newer footage. With its Event File Protection function, ELITE ensures that critical footage is not overwritten by normal driving clips.

• Protects up to 50 critical event recordings from overwriting.

Hassle-Free Installation

• Mount the front and rear cams
• Plug the power and video cables
•  Start driving

All Features At Your Fingertips

The BlackVue App is designed with simplicity and ease of use in mind. No convoluted menus. Access all the key features from the main screen.

• Intuitive Interface: Need to check and download a video to your phone? No problem. Just open the BlackVue App and tap the Playback/Live View button, then browse your videos.
• Fast Wi-Fi: ELITE 9 lets you download a max resolution video clip in about 10-20 seconds (5GHz connection).

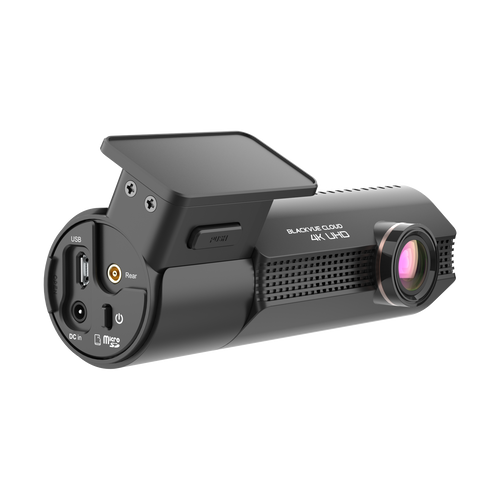

Compact and Functional Design

• USB Port: to connect the optional LTE Connectivity Module (CM100G LTE)
• Power Button: short press to turn on, low press to turn off.
• MicroSD Slot: lift the cover to access the microSD card.
• Speaker | Microphone: ELITE 9 provides voice prompts in 17 languages and records clear audio (can be switched off in settings).
• LED Indicators: view recording and connectivity statuses.
• Touch Sensor: tap to trigger Manual Event recording.

Safe Operation in Extreme Temperatures

ELITE 9 is engineered to run smoothly in both hot and cold weather.

• Supercapacitor: provides short-term power for error-free recording in case of power loss. Highly resistant and stable in extremely hot and cold temperatures.
• Overheat protection: ELITE 9 operates at temperatures ranging from -20°C (-4°F) to +65°C (149°F). If the ambient temperature reaches 75°C (167°F), it shuts down to protect itself. When down to 65°C, it turns back on.

Specifications:

• Channel: 2CH
• Highlights: 4K UHD HDR + 2K QHD HDR, 2.4-5GHz Wi-Fi, Cloud (data not included), Power Saving Parking Mode
• Product Dimensions / Weight:
• Front: Length 129.7mm (5.12in) x Width 40mm (1.58in) x Height 55.3mm (2.18in), 203.2g (0.45 lb)
• Rear: Length 67mm (2.64in) x Width 29mm (1.14in) x Height 39.1mm (1.54in), 38.8g (0.09 lb)
• Rear Camera Connection: Coaxial cable
• Memory Support: microSD card up to 1TB
• Smart Event Recording:
• Driving Impact
• Parking Impact
• Overspeed
• Hard Acceleration
• Hard Braking
• Hard Cornering
• (Including 10 sec. Pre-Event buffer)
• Parking Mode Power:
• Saving ( < 1mA)
• Motion Detection
• Time Lapse (Parking Mode add-on required)
• Parking Mode Event Voice Notifications: YES
• Protection Systems:
• Timer Cut-Off: 1~48H
• Low Voltage Cut-Off: Passenger Vehicle 11.8~12.5V or Heavy Vehicle 22.8~24V
• High Temperature Cut-Off (70°C)
• Imaging Sensor:
• Front: STARVIS 2 CMOS Sensor (IMX678)
• Rear: STARVIS 2 CMOS Sensor (IMX675)
• Viewing Angle:
• Front: Diagonal 146° , Horizontal 125°, Vertical 68°
• Rear: Diagonal 142° , Horizontal 118°, Vertical 62°
• Resolution Frame Rate:
• Front: 4K UHD HDR@30fps
• Rear: 2K QHD HDR@30fps
• * Frame rate may vary during Wi-Fi streaming.
• Video Codec: H.265 (HEVC), H.264 (AVC)
• Image Quality and Bitrate Front/Rear:
• Extreme (H.265): 60+25 Mbps
• Extreme (H.264): 40+25 Mbps
• High (Default): 30+20 Mbps
• Medium: 20+15 Mbps
• Low: 10+10 Mbps
• Format Free: YES (Adaptive)
• Event File Overwrite Protection: YES (up to 50)
• SD Card Failure Alert: YES
• Scheduled Reboot: YES
• Video File Extension: MP4
• Wi-Fi: Built-in (802.11ac – 2.4-5GHz)
• Cloud Compatible: YES
• GPS: Built-in (Dual Band : GPS, GLONASS)
• Microphone: Built-in
• Speaker: Built-in
• Impact Sensor: 3-Axis Acceleration Sensor
• LED Indicators:
• Front: Recording status, GPS connectivity, A/C (App/Cloud) connectivity
• Rear: Power LED
• Button:
• Power Button: Short press to turn on / Long press to turn off.
• Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
• Bluetooth Remote Button (Optional): Manual Recording
• Operation Temperature: -20 °C − 65 °C (-4 °F − 149 °F)
• Storage Temperature: -20 °C − 80 °C (-4 °F − 176 °F )
• High Temp Cut Off: Approx. 75 °C (167 °F)
• Backup Battery: Built-in supercapacitor
• Input Power: DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
• Power Consumption:
• Normal Mode (GPS On/2CH): 5.52W (Avg. 460mA /12V)
• Parking Mode (GPS Off/2CH): 4.32W (Avg. 360mA /12V)
• Power Saving Mode: Under 12mW (0.012W) (Avg. <1mA / 12V)
• * Actual power consumption may vary depending on use conditions and environment.
• Certifications:
• Front: Telec, IC(ISED), CE, FCC, RCM, RoHS, WEEE
• Rear: FCC, IC(ISED), CE, RoHS, WEEE
• Software:
• BlackVue Viewer:  Windows 7 or higher, Mac Sierra OS X (10.12) or higher
• FLEETA Web Viewer: Chrome 71 or higher, Safari 13.0 or higher
• App:
• BlackVue App: Android 10.0 or higher, iOS 15.0 or higher
• Others: Adaptive Format-Free File Management System
• Bluetooth: Built-in (V2.1+EDR/5.3)
• LTE: External (with optional LTE Module)

What's in the Box:

• Front Camera
• Rear Camera
• USB-C Power Cable
• Hardwiring Cable
• USB-C 12V Adapter
• Rear camera connection cable
• MicroSD Card
• Double-sided tape for the mounting brackets
• Pry tool / Trim Remover
• Cable clips (5 EA)
• Alcohol Pad
