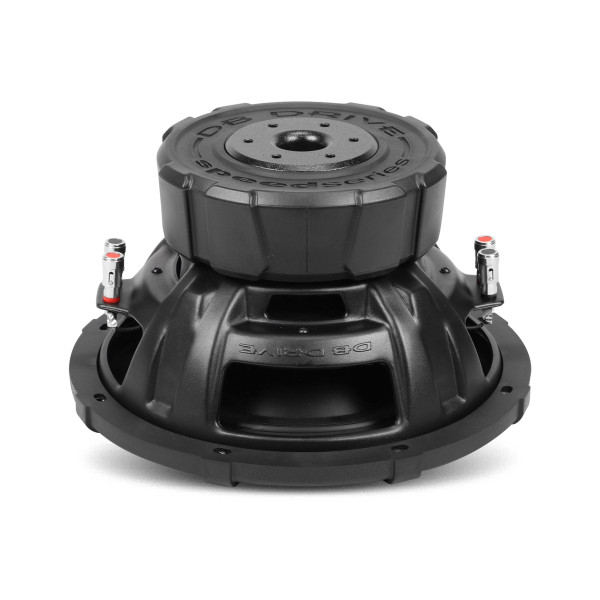

DB Drive SPW10D4 Speed Series 10" 400W RMS Subwoofer - Dual 4 Ohm

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$329.95

$269.95

SKU:: SPW10D4
UPC:: 810219027909
Condition:: New
Availability:: Special Order - Usually Ships in 4-8 Days
Shipping:: Calculated at Checkout

DB Drive SPW10D4 Speed Series 10" 400W RMS Subwoofer - Dual 4 Ohm

$329.95

$269.95

Description
Shipping & Returns

Description

About: DB Drive SPW10D4 Speed Series 10" 400W RMS Subwoofer - Dual 4 Ohm

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

Features:

2″ (101.6mm) 4 Layer Voice Coil w/ KSV Former
Vac PP Sub Cone Structure with Butyl rubber Surround
Inverted Vac PP Dome
Ferrite Oxide magnet
Anti-resonant Stamped Steel frame
High Carbon Steel top and bottom plates
Poly-Cotton Dampeners
Compression Speaker Terminal

Specifications:

Structure: 10″ (25.4cm) Woofer
Dynamic Power Handling: 1250 Watts
Nominal Power Handling: 600 Watts
Impedance: Dual 4Ω Voice Coil

Mounting Information:

Outside Diameter: 10.43″ (265mm)
Cutout Diameter: 9.06″ (230mm)
Mounting Depth: 5.24″ (133mm)

Thiele-Small Parameters:

Resonant Frequency (fs): 28.8 Hz
D.C. Voice Coil Resistance (Re): 6.4 Ω
Mechanical Quality Factor (Qms): 5.84
Electrical Quality Factor (Qes): 0.46
Total Quality Factor (Qts): 0.42
Mass of Diaphragm/Coil (Mms): 141.8 g
Force Factor (Bl): 19
Sound Pressure Level (SPL): 84.2 dB
