DB Drive

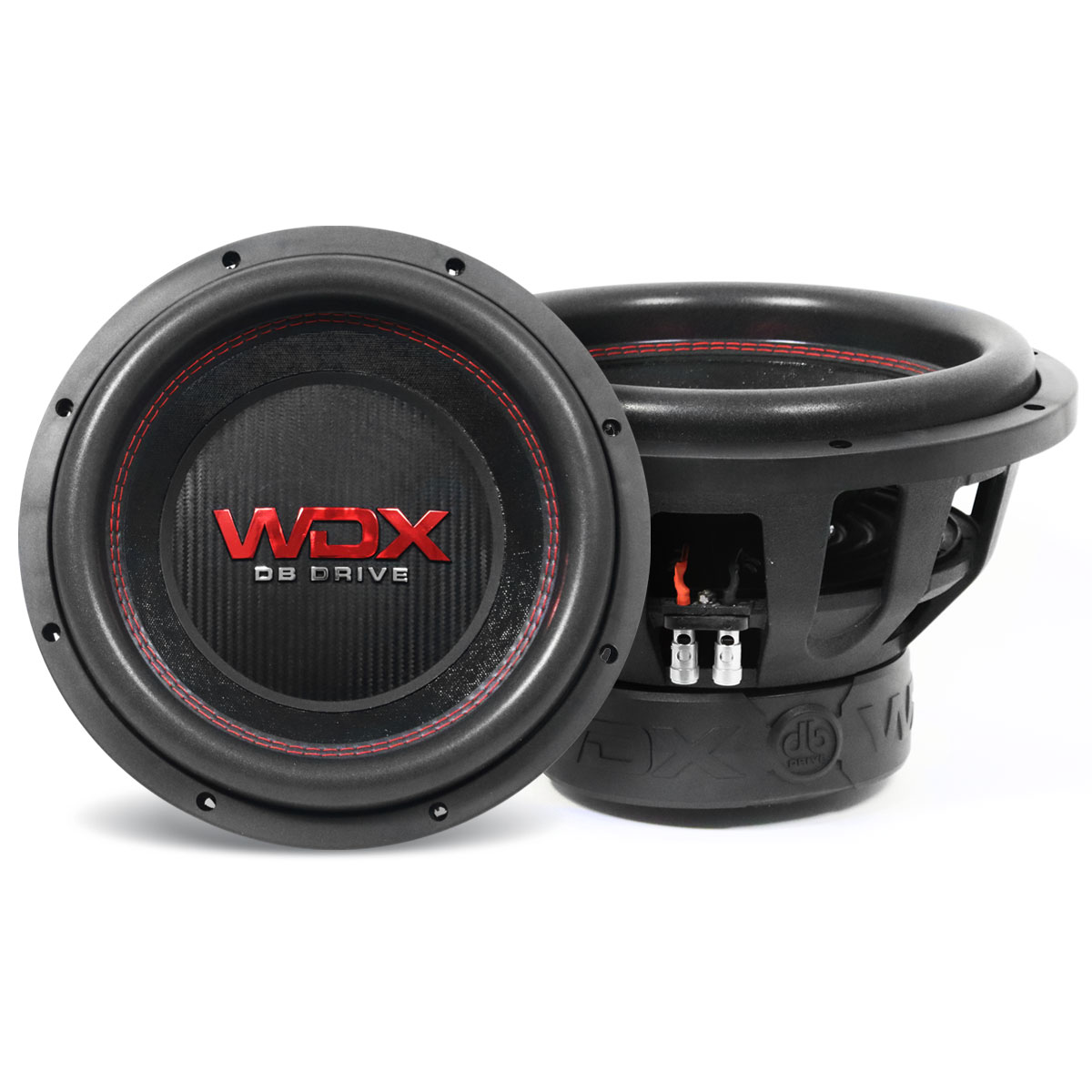

DB Drive WDX12G1.4 WDX G1 Series 12" 1000W RMS Subwoofer - Dual 4 Ohm

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$499.95

$429.95

SKU:: WDX12G1.4
UPC:: 811536032669
Condition:: New
Availability:: Special Order - Usually Ships in 4-8 Days
Shipping:: Calculated at Checkout

DB Drive WDX12G1.4 WDX G1 Series 12" 1000W RMS Subwoofer - Dual 4 Ohm

$499.95

$429.95

Description
Shipping & Returns

Description

About: DB Drive WDX12G1.4 WDX G1 Series 12" 1000W RMS Subwoofer - Dual 4 Ohm

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

Features:

3″ BASV High Temperature Voice coil
Non-Pressed paper cone
Double stitched foam surround
Dual poly-cotton dampeners
Die-cast aluminum vented basket
Rubber gasket trim ring
Large gauge compression terminals
Protective magnet cover

Specifications:

Structure: 12″ (30.48cm) Woofer
Dynamic Power Handling: 2000 Watts
Nominal Power Handling: 1000 Watts
Impedance: Dual 4Ω Voice Coil

Mounting Information:

Outside Diameter: 12.70″ (323.50mm)
Cutout Diameter: 11.10″ (281.18mm)
Mounting Depth: 6.85″ (173.80mm)

Thiele-Small Parameters:

Resonant Frequency (fs): 40.93Hz
D.C. Voice Coil Resistance (Re): 3.2 x 3.2Ω
Mechanical Quality Factor (Qms): 3.885
Electrical Quality Factor (Qes): 0.739
Total Quality Factor (Qts): 0.621
Equivalent Air Volume to Cms (Vas): 18.014 L
Mass of Diaphragm/Coil (Mms): 335.972 g
Force Factor (Bl): 13.679
Sound Pressure Level (SPL): 84.1 dB
