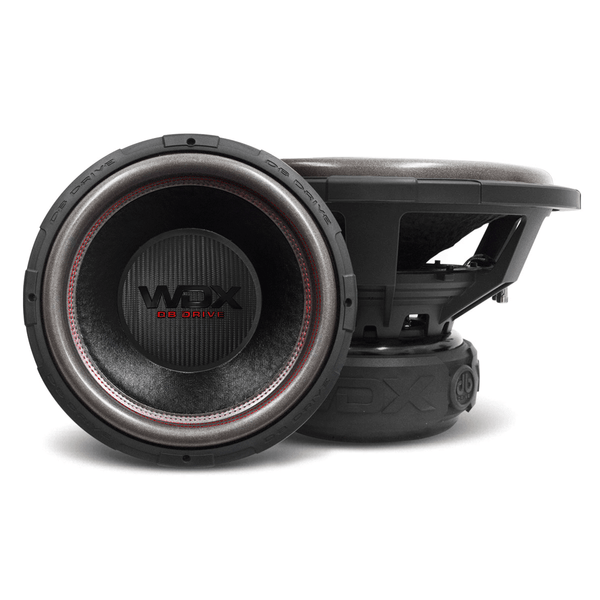

DB Drive WDX15G5 WDX G5 Competition Series 15" 3000W RMS Subwoofer

$989.95

Description
Shipping & Returns

Description

About: DB Drive WDX15G5 WDX G5 Competition Series 15" 3000W RMS Subwoofer

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

Features:

3.0″ 4 layer Anodized aluminum high temperature voice coil
Non-Pressed paper cone
Double stitched foam surround
Dual poly-cotton dampeners
Die-cast aluminum vented basket
Rubber gasket trim ring
Large gauge compression terminals

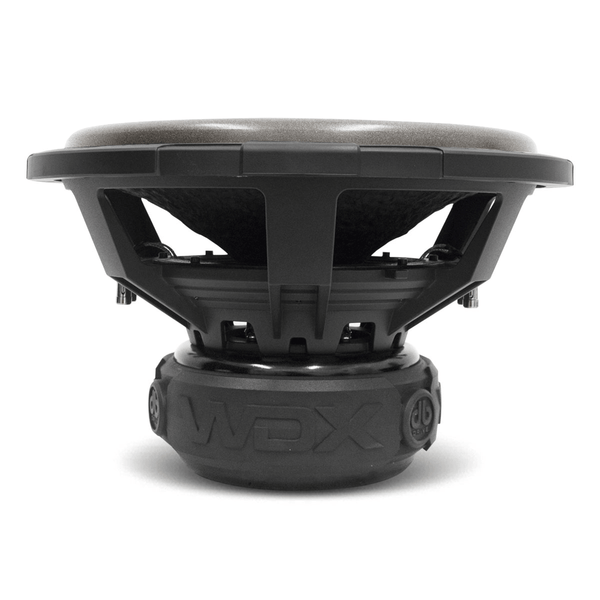

Protective magnet cover

Specifications:

Structure": 15″ (38cm) Woofer
Dynamic Power Handling: 6000 Watts
Nominal Power Handling: 3000 Watts
Impedance: Dual 4Ω Voice Coil

Mounting Information:

Outside Diameter: 15.7″ (399mm)
Cutout Diameter: 13.74″ (349mm)
Mounting Depth: 8.37″ (212.5mm)

Thiele-Small Parameters	Dual 2 Ohm	Dual 4 Ohm
Resonant Frequency (Fs)	37.92 Hz	39.22 Hz
D.C. Voice Coil Resistance (Re)	2 x 2Ω	2 x 3.2Ω
Mechanical Quality Factor (Qms)	4.18	4.07
Electrical Quality Factor (Qes)	0.659	0.66
Total Quality Factor (Qts)	0.569	0.56
Equivalent Air Volume to Cms (Vas)	44.36 L	48.08 L
Mass of Diaphragm/Coil (Mms)	387.93 g	334.66 g
Force Factor (Bl)	23.69	28.26
Sound Pressure Level (SPL)	87.5 dB	88.3 dB
