DS18

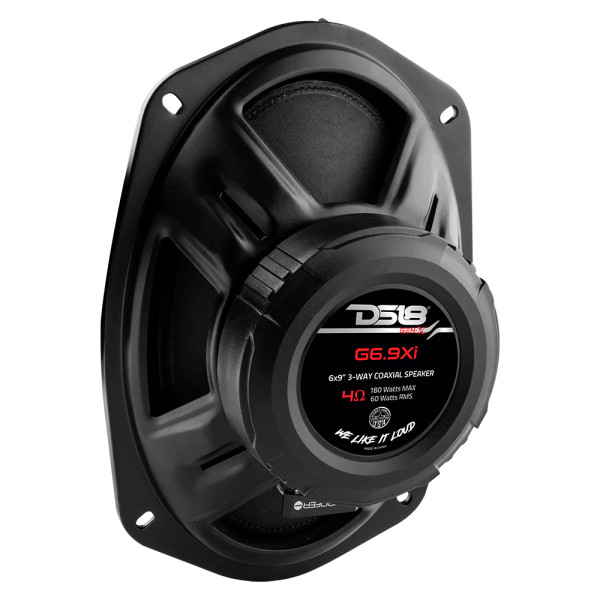

DS18 G6.9Xi 6x9" 60W RMS 3-Way Coaxial Car Speakers

$76.99
$66.99
SKU:
G6.9Xi
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

DS18 G6.9Xi 6x9" 60W RMS 3-Way Coaxial Car Speakers

$76.99
$66.99

About: DS18 G6.9Xi 6x9" 60W RMS 3-Way Coaxial Car Speakers

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers. The G6.9Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The G6.9Xi is notable for its 3-way design consisting of a woofer, a mid-range driver, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G6.9Xi's 3-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers. The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz. These speakers get loud extremely easily with a MAX Power Handling of 180W and RMS Power Handling of 60W.Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G6.9Xi will deliver. Order yours today and take the first step towards audio perfection on the road.

Product Highlights:

  • 6X9" 3-Way Coaxial
  • MAX Power: 180 Watts
  • RMS Power: 60 Watts
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnets
  • Grills Included

Specifications:

  • Nominal Diameter: 6X9" (152 x 228 mm)
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 60W
  • Maximum Power Handling: 180W
  • Sensitivity (1w/1m): 86dB
  • Frequency Response: 35Hz-20KHz
  • Recommended HI Pass Crossover: 50Hz
  • Number of ways: 3
  • Sold as a Pair
  • Grill Included: Yes

Woofer Specifications:

  • Voice Coil Diameter: 1" (25.5 mm)
  • Voice Coil Former Material: ASV
  • Winding Material: EISV
  • Cone Material: Paper
  • Surround Material: Rubber
  • Basket Material: Steel
  • Basket Color/Finish: Black Matte
  • Magnet Material: Barium Ferrite
  • Magnet Weight: 15.7Oz (445g)

Thiele & Small Parameters:

  • Equivalent Volume (Vas): 14.3L / 0.5ft3
  • Excursion (one way) (Xmax): 3.3mm
  • Free Air Resonance (Fs): 68Hz
  • Mechanical Factor (Qms): 4.8
  • Electrical Factor (Qes): 1.97
  • Total Factor (Qts): 1.4
  • Mechanical Mass (Mms): 23.8g
  • Mechanical Compliance (Cms): 248mm/N
  • BL Factor (BL): 4.2
  • Voice Coil Inductance (Le): 197uH
  • Cone Area (Sd): 202 cm2
  • DC Resistance (Re): 3.7 Ohms
  • Mechanical Mass w/o air (Mmd): 20.5g

Tweeter Specifications:

  • Nominal Diameter: Tw1: 2.3" / 59mm Tw2: 1.1" / 29mm
  • Voice Coil Diameter: Tw1: 0.6" / 17mm Tw2: Peizo
  • Voice Coil Former Material: Tw1: PESV Tw2: N/A
  • Winding Material: Tw1: EISVM Tw2: N/A
  • Diaphragm Material: Tw1: Mylar Tw2: Mylar
  • Magnet Material: Tw1: Barium Ferrite Tw2: N/A
  • Magnet Weight: Tw1: 34g Tw2: N/A

Speaker Measurements:

  • Overall Diameter: 6.4" x 9.2" (163 x 234 mm)
  • Overall Depth: 3.85" (97.8 mm)
  • Overall Diameter (With Grill): 7.24" x 10.4" (184 x 264 mm)
  • Overall Depth (With Grill): 4.15" (105.5 mm)
  • Front Mount Baffle Cutout: 5.9 x 8.66" (150 x 220 mm)
  • Mounting Depth: 2.95" (75 mm)
  • Motor Diameter: 4.17" (106 mm)
  • Tweeter Protrusion: 0.9" (22.8 mm)
  • Gross Single Unit Weight: 1.25KG
  • Single Unit Box Dimensions (W x L x H): 305 x 125 x 375mm
