About: Marantz Professional AVS Audio-Video Streamer

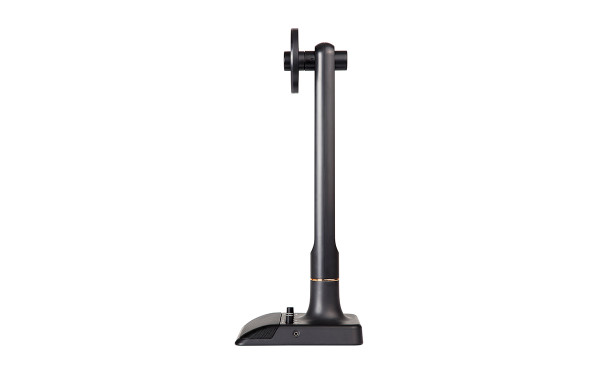

The Marantz AVS is an all-in-one broadcast system that offers the live streamer professional components in a compact, free-standing array.

The AVS features a full HD webcam compatible with H.264 video compression, a high-quality 48kHz/16-bit USB condenser boundary microphone conveniently integrated into the base of the unit, and an LED light ring, daylight-balanced, with both cool and warm filter accessories for the look of a studio production. The Marantz AVS is a unique, all-in-one broadcast tool that is designed for live-streaming, video calling and gaming applications. It is compact and simple, perfect on a desktop, and the lightweight design makes it portable enough to take on location.

To make the system truly self-contained and capable of handling any streaming/podcast task without the need for additional equipment, the AVS has a high-speed USB-C computer output for low latency and an internal USB hub. There is even an onboard headphone amplifier so audio monitoring is simple. Everything the demanding streaming/broadcasting enthusiast needs is right here, in one convenient, high-performance package.

Features:

• All-in-one, freestanding broadcasting system
• Full HD webcam with H.264 video compression
• High-quality USB condenser boundary microphone (48kHz/16-bit) built into base
• Dimmable LED light ring / daylight-balanced with cool, warm and diffusion filter accessories
• USB-C output to computer for high-speed, low-latency
• Internal USB hub
• Headphone amplifier

Specifications:

• Camera:
• Fixed-focus
• CMOS Sensor
• Diagonal field of view: 70 °
• Optical resolution: 2MP native
• Full HD 1080p video (up to 1920 x 1080 pixels) recording
• Frame rate: 30 fps/1080p, 30 fps/720p
• H.264 video compression
• ON/OFF switch
• Automatic low-light and white balance correction
• Compatible with Windows® XP, 7, 8, 10, Mac OS X, LINUX, Android
• Operates in USB Video Device Class (UVC) mode
• USB 2.0 – Class 2 Compliant Driver
• Boundary Microphone:
• Element: Back electret condenser
• Polar pattern: Half-cardioid (cardioid in hemisphere above mounting surface)
• Open Circuit Sensitivity: -44dB ± 3dB (0db = 1V/Pa @ 1KHZ)
• Output impedance: 2.2 kΩ ± 30% (@ 1kHz)
• Sample rate: 32 kHz / 44.1 kHz / 48 kHz @16-bit
• Frequency response: 150 Hz - 10 kHz
• Signal-to-Noise Ratio: >60 dB (1kHz @ 1% THD)
• Max SPL: 100 dB
• ON/OFF switch
• Headphone Amplifier:
• Frequency Response: 20 Hz – 20 kHz
• Output power: 130mW
• Level control
• 3.5mm stereo output
• Mix control to mix microphone audio with USB audio input
• LED Light Ring:
• 4" dimmable LED light ring
• (30) wide-angle white LEDs @ 5600K
• (3) accessory filters: Diffused daylight, Cool, Warm
• USB:
• USB 1 & 2: (2) Type A USB 3.0, 0.75A total available current between two ports for powering devices
• To PC: (1) USB-C connector / USB 3.0 connection
• USB Audio In: Class 2 compliant speaker device for audio to be monitored in headphone output – set by user in the computer
• Microphone Auxiliary Output: Fixed line-level output on 3.5mm TRS jack
• Power:
• AC-DC power supply
• 100 ~ 240 VAC compatible
• 12 VDC @ 1 amp output
• Dimensions (H x W x D): 19.1" x 7.39" x 6.26" (485 x 188 x 159 mm)
• Weight: 2.29 lbs (1.04kg)
