Descriptions

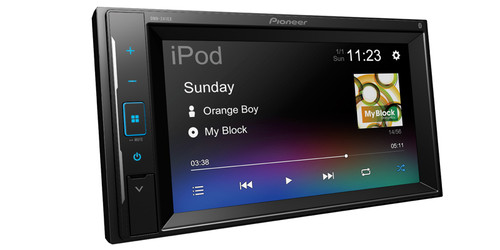

About: Pioneer DMH-241EX Digital Media Receiver

The DMH-241EX is a 6.2" resistive touchscreen digital media receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth® for hands-free calling and audio streaming. Audio/video playback from USB. Safety features such as backup camera ready and much more.

6.2 Inch Touchscreen (Clear-Resistive)

Upgrade your ride with a touchscreen display with built-in LED backlight, color customization, and illumination timer, dimmer setting, and brightness control.

Weblink® Smartphone Interface (Wired)

WebLink enables smartphone app projection from many popular Android® and iOS® devices to in-vehicle touch displays. WebLink for Pioneer AV receivers expands in-car entertainment with an amazing array of apps.

Pioneer Vozsis with Alexa app

Invite Amazon's versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app. With a tap of the touchscreen and your voice, access your Amazon Prime Music, Audible audiobooks, Kindle library, Flash Briefings, and more to stay informed and entertained during your drive.

Bluetooth

This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.

Back up Camera Input (1-camera)

Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.

Wired Remote Input

This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons of your vehicle. (if applicable)

FLAC

Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.

Time Alignment

This feature allows for delay time and synchronizing from each speaker to be adjusted to correct any phase mismatches in the sound resulting from the listening position. No need for any acoustics degree to do the job, simply measure the distance between your listening position and the speakers, then enter these measurements into the Pioneer receiver.

Specifications:

• Digital multimedia receiver (does not play CDs)
• 6.2" resistive touchscreen display with variable color button illumination
• Built-in Bluetooth for hands-free calling and audio streaming
• Fits double-DIN dash openings
• Remote control

Smartphone Features:

• Works with WebLink for access to select apps through the receiver's display
• Amazon Alexa voice control (Pioneer Vozsis smartphone app required)
• Built-in iPhone control via USB
• Built-in Android music control via USB

Audio/Video Features:

• Video playback from an external source or USB drive
• Plays MP3, WMA, AAC, FLAC, and WAV music files
• Plays lossless FLAC audio files up to 192kHz/24-bit
• High- and low-pass filters
• 13-band graphic equalizer

Expandability:

• Inputs: rear audio/video input (mini), front USB input, rear-view camera input
• Outputs: video output, 5-channel preamp outputs (2-volt front, rear, mono sub)

Other Information:

• Wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• Compatible with most factory steering wheel audio controls (adapter required)
• Built-in MOSFET amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)

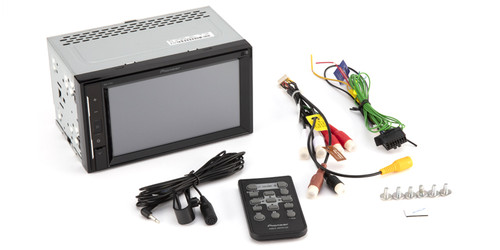

What’s in the Box:

• Digital multimedia receiver (10A fuse)
• Wiring harness (6.5' Parking brake wire)
• Preout/AV harness
• Remote control (CXE9605)
• CR2025 3V lithium battery (installed in remote)
• Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
• Two-sided tape
• 6 Pan-head ISO screws (M5 x 9mm)
• 6 Counter-sunk ISO screws (M5 x 9mm)
• Installation Manual
• Quick Start Guide
• Warranty Sheet
