Descriptions

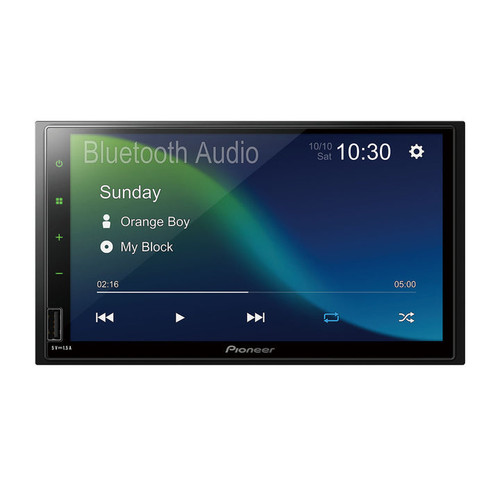

About: Pioneer DMH-470EX 7" Capacitive Touchscreen Digital Media Receiver

Make every drive more enjoyable with the DMH-470EX. Its 7" touchscreen puts music, navigation, and your favorite apps at your fingertips. Stay connected with Bluetooth® for hands-free calls and streaming, and drive with confidence using backup camera support.

Connect Your Favorite Apps with WebLink®

Enjoy easy access to apps like Waze for navigation and YouTube for entertainment right on your car’s screen. WebLink® uses a simple wired connection to mirror your smartphone, so you can stay connected without distractions.

Bluetooth® for Hands-Free Calling and Music

Stay connected safely while driving. Bluetooth® lets you make hands-free calls and stream music wirelessly from your phone. Includes an external microphone for clear conversations, even in noisy environments.

High-Quality Audio with FLAC Support

Experience premium sound quality with FLAC playback. Enjoy rich, detailed audio that brings out every note, so your music sounds exactly as the artist intended.

Product Performance

• Continuous Power Output: 22 W x 4-Channel
• Load Impedence Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
• Max Power Output: 50 W x 4-ch 4 ohm
• Rca Preamp Outputs: 3-ch
• Rca Preout Voltage: 2V
• Rms Power Output (Cta-2006): 14 W RMS x 4-ch 4 ohm

General

• Detachable Face Security: Fixed
• Multi-Language Display: English, French, Spanish, Portuguese, Chinese (Simplified)
• Steering Wheel Control Ready (Adapter Sold Separately): Yes

Display

• Back Light: LED
• Brightness Control: Yes
• Device (Non-DIN/Modular Unit): 2-DIN, Short Chassis
• Monitor Mechanism: Fixed
• Resolution: 1024 x 600
• Screen Size/Aspect Ratio: 7"/16:9
• Touch Screen: Capacitive

Bluetooth

• Built-in Bluetooth®: Yes
• Microphone Included: Included

Tuner

• Best Station Memory: Yes
• Presets: 18 FM 12 AM

Intergration

• Weblink: 2.0

Digital Media Playback

• Audio Playback via USB: WMA Audio Playback, MP3 Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res)
• Audio Video Playback via USB: H.264, H.263, .avi, .mpg/mpeg, .mp4, .mkv, .mov, .flv, .m4v, .ts/.m2ts/.mts
• Image Display Via USB: BMP, JPEG, PNG

Audio

• Built-in Amplifier: MOSFET 50 W x 4
• Crossover Standard Mode: HPF/LPF
• Customizable Graphic Equalizer: 13 Band
• DA Converter: 24 Bit
• Digital Signal Processor: Built In
• Easy EQ (EEQ) Preset Equalizer: Yes
• Loudness: High/Mid/Low/Off
• Speaker Output: 4-ch
• Subwoofer Control: Yes

Expandability

• Audio Video Inputs: Input 1 - Backup Camera Dedicated, Input 2 - Audio/Video AUX (Minijack), Input 3 - 2nd Camera
• Firmware upgradability: Yes
• RCA-Video-Output: Yes
• USB: Front Type-A (5V, 1.5 A)
