PRV Audio WG175Py-Nd-4 1" Exit Compression Driver + Horn

$97.99

$91.99

Description
Shipping & Returns

Description

About: PRV Audio WG175Py-Nd-4 1" Exit Compression Driver + Horn

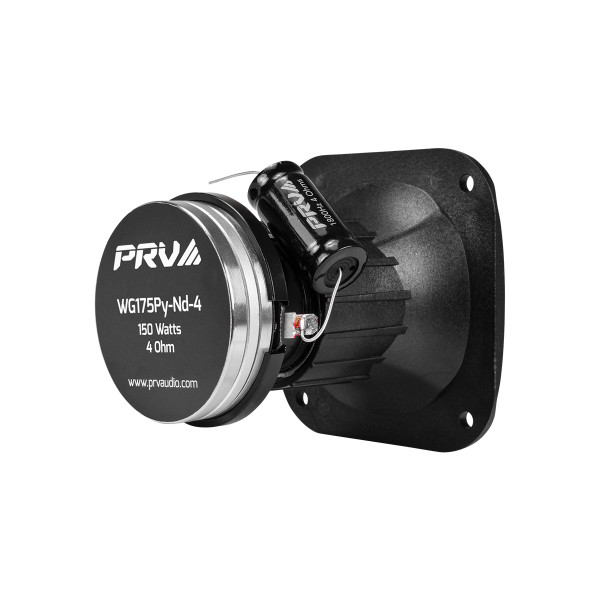

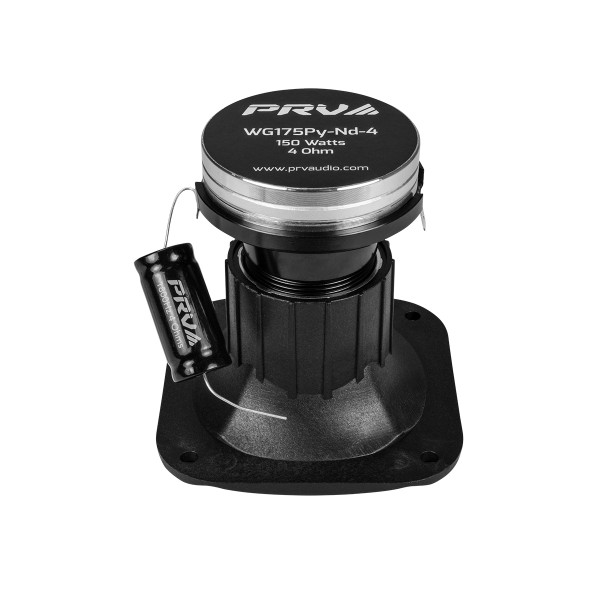

The WG175Py-Nd-4 is a Mini Horn Driver featuring a 1″ Exit Polyimide Pro Audio Compression Driver with a 1” exit WG08-25 Waveguide. This is a top-of-the-line mids & highs horn driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm.

The driver’s small magnet diameter allows front mounting, making it easy to install without detaching the driver from the WG08-25 Horn. Small 3.31″ x 3.31″ faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers. Its design was developed to give custom doors a new solution for a ultra-small horn driver, this mids and highs horn driver possesses extraordinary sensitivity thanks to high strength neodymium magnet.

The specially designed Polyimide diaphragm provides durability and additional damping for natural sound quality.This driver is built to resist the elements, perfect for outdoor use. This technology raises the bar for high frequency drivers by giving the driver wider usable bandwidth for smooth, dynamic output along with excellent efficiency. The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.

Features:

Crystal clear natural sound with wider response from 1,600 to 20,000 Hz
Polyimide diaphragm with 1″ Voice Coil, providing high output along with excellent efficiency – 107 dB Sensitivity
High Frequency 1″ Exit Neo Driver + Mini Horn WG08-25 – provides wide coverage range output
Water Resistant PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music
Neodymium driver mounted on small horn, ideal for tight spaces, Great choice for custom car audio door panels where the space is limited

Specification:

Exit Throat Diameter: 1” (25.4mm)
Nominal impedance: 4 Ohm
Nominal Power Handling: 75 Watts
Continuous Program Power (RMS): 150 Watts
Max Peak Power: 300 Watts
Sensitivity 2.00V at 1m: 107 dB
Recommended Hi Pass Crossover: 1800 Hz 12db/oct Crossover
Frequency Response at -10dB: 1,600 – 20,000 Hz
Voice Coil Diameter: 1” (25.4mm)
Voice Coil Wire: CCAW
Voice Coil Former Material: Kapton
Diaphragm Material: Polyimide
Flux Density: 2.25 T
Magnet Material: Neodymium

Mounting and Shipping Information:

Overall Depth: 3.39″ (86 mm)
Mounting Depth: 3.15″ (80 mm)
Overall Width: 3.31″ (84 mm)
Overall Height: 3.31″ (84 mm)
Baffle Cutout Diameter: 2.80″ (71 mm)
Net Weight: 1.9 lbs (0.86 kg)
Shipping Weight: 2.0 lbs (0.92 kg)
Carton Dimensions (W x L x H): 3.75″ x 3.75″ x 3.75″ (95 x 95 x 95 mm)

Note:

Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
