About: Skar Audio EVL-2X10D4 Dual 10" 2000W RMS EVL Series Loaded Vented Subwoofer Enclosure

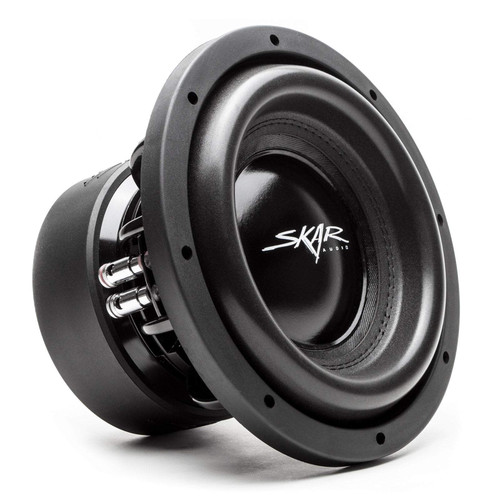

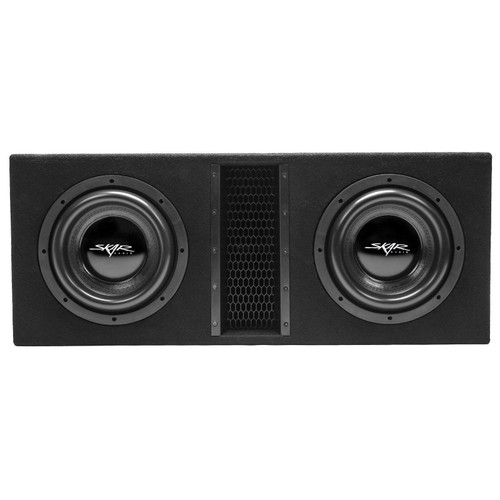

Skar Audio designed the EVL-2X10D4 loaded enclosure to extract the immense output capacity of the EVL-10 driver, while still providing outstanding sound quality. We remove the guesswork from designing a competition grade system, as this enclosure arrives pre-wired and ready to provide thunderous low-end bass response. This loaded enclosure is equipped with two EVL-10 D4 2,000 watt max power subwoofers, giving this enclosure a combined max power of 4,000 watts. The subwoofers are pre-loaded and wired inside of a custom designed, wedge-style vented enclosure, featuring our advanced port design which promotes generous air movement, while reducing distortion.
This custom enclosure is covered in premium grade black carpeting, providing a sleek appearance that allows the enclosure to look as good as it sounds. Due to the weight of the massive EVL motor, we built this enclosure with extensive internal bracing, ensuring structural integrity and reliability. Our experts designed this enclosure specifically for the EVL subwoofers, ensuring impeccable sound quality and compatibility. The subwoofers come pre-wired and loaded inside of the enclosure allowing for an easy and hassle free installation. The dual 4 ohm subwoofers are wired up inside of the enclosure so that the final impedance load is configured for 1-ohm at the terminals (one terminal cup).
This enclosure was engineered by Skar Audio specifically for the subwoofers that are loaded in it, ensuring perfect sound and compatibility. Every subwoofer is different, and when buying a loaded enclosure it is so critical to ensure that the subwoofer and enclosure are an ideal match, or you will lose sound quality and output. With this loaded subwoofer enclosure model, all of those concerns are eliminated, making it easier than ever to add powerful aftermarket bass to your vehicle.
Specifications:
- Type: Dual 10" Ported 4‚000W Peak Power Loaded Subwoofer Enclosure
- Size: 10"
- Port Type: High Performance Slot Port Design
- Power Handling:
- Peak Power: 4,000 Watts (pair) | 2,000 Watts (each)
- RMS Power: 2,000 Watts (pair) | 1,000 Watts (each)
- Wood Type: MDF
- Port Width: 2.52"
- Wood Thickness: 5/8"
- Enclosure Style: Universal Fit Wedge Design
- Number of Ports: 1
- Enclosure Finish: Black Carpet
- Qty of Subwoofers: 2
- Internal Air Space of Enclosure: 3.30 ft³

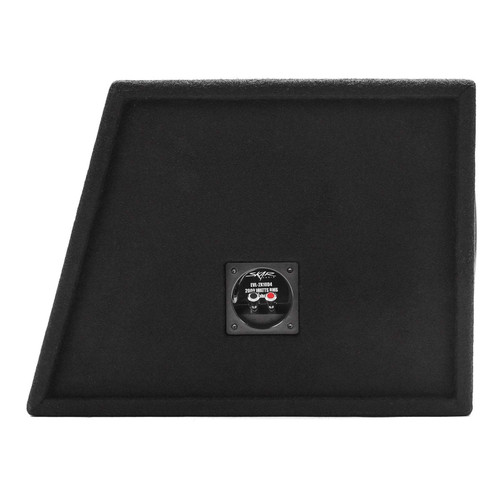

- Number of Terminal Cup Connections: 1
- Sensitivity: 81.9 dB
- Frequency Response: 28 Hz - 300 Hz
- Tuning Frequency of Enclosure: 32 Hz
Dimensions:
- Height: 13.94"
- Length: 34.62"
- Depth 2 (Top): 14.96"
- Depth 1 (Bottom): 18.71"
