Taramps

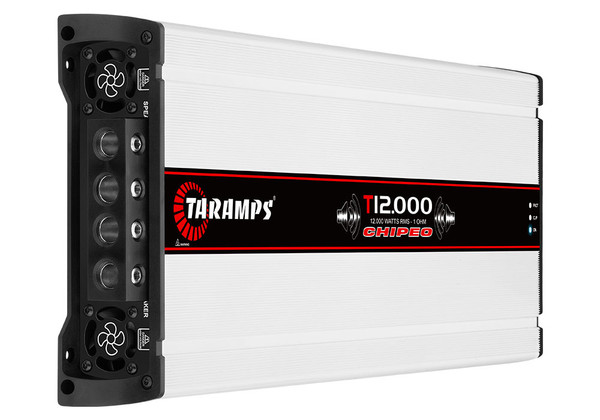

Taramps T12.000 Chipeo 12K Monoblock Amplifier

$1,099.99
SKU:
T12.000 CHIPEO
UPC:
7908706600063
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

Taramps T12.000 Chipeo 12K Monoblock Amplifier

$1,099.99

Taramps T12.000 Chipeo 12K Monoblock Amplifier

$1,099.99

About: Taramps T12.000 CHIPEO 12K Monoblock Amplifier (Taramps Authorized Canadian Dealer)

Are you ready to change it to a new level? With the NEW T12000 Chipeo by Taramps, you’ll feel every beat, every sound and every detail of your favorite music like never before. Available in 1 or 2 Ohm versions, this fantastic amplifier gives you 12300 WRMS at 12.6 Volts and can reach an incredible 13300 WRMS operating at 14.4 Volts. Experience much more STRENGTH, QUALITY, EFFICIENCY and RESISTANCE, and take your sound experience to a new level. Get ready for an intense and exciting musical journey!

Technical Information


T12.000 CHIPEO – 1 OHM

T12.000 CHIPEO – 2 OHMS

OPERATION CLASS D  D
MINIMUM OUTPUT IMPEDANCE 1 Ohm  2 Ohms
NUMBER OF CHANNELS 01  01
MAXIMUM POWER Output Power @12.6VDC
1 OHM: 12300W RMS
2 OHMS: 7626W RMS

Output Power @13.8VDC
1 OHM: 13000W RMS
2 OHMS: 8060W RMS

Output Power @14.4VDC
1 OHM: 13300W RMS
2 OHMS: 7980W RMS
Output Power @12,6VDC
2 Ohms: 12300W RMS
4 Ohms: 7626W RMS

Output Power @13,8VDC
2 Ohms: 13000W RMS
4 Ohms: 8060W RMS

Output Power @14,4VDC
2 Ohms: 13300W RMS
4 Ohms: 7980W RMS
INPUT SENSITIVITY 220mV ~ 4V Rms  220mV ~ 4V Rms
SIGNAL TO NOISE RATIO >90dB  >90dB
FREQUENCY RESPONSE 5Hz ~ 5KHz (-3dB)  5Hz ~ 5KHz (-3dB)
EFFICIENCY 81%  86%
INPUT IMPEDANCE 10K Ohms 10K Ohms
PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection  Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection
MINIMUM SUPPLY VOLTAGE 9VDC  9VDC
MAXIMUM SUPPLY VOLTAGE 17VDC 17VDC
CONSUMPTION AT REST 5.60A  5.60A
MAXIMUM MUSIC CONSUMPTION 588A  554A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 1176A 1108A
DIMENSIONS (WXHXD) 8.98" x 2.52" x 20.94" (228 x 64 x 532mm)  8.98" x 2.52" x 20.94" (228 x 64 x 532mm)
WEIGHT 16.72lb ( 7.60Kg)  16.72lb (7.60Kg)
EAN 7908706600063  7908706600056

Precautions
  • Do not mount amplifier to speaker box.  Cyclic Vibrational Failure is #1 fail rate of amplifiers and these are lighter than most so their potential is higher if not followed.
  • Do not wire this amplifier lower than 1ohm nominal Impedance. (Equivalent to ~0.7 ohms DCR or Resistive measurement via DMM).
  • Do not clip amplifier above 15.0v for extended periods of time
  • Do not drive amplifier into clipping + protection for extended periods of time (exceeding 20% THD)
