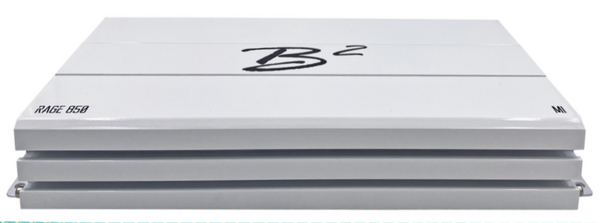

About: B2 Audio RAGE MI 850 Monoblock Amplifier

Imagine the RAGE amps, with their features, performance and versatility. Their footprint is small for their performance, but can it be wrapped up in a slight different package? The RAGE MI, where the MI equals Mini does exactly that. Power, Performance, Perception & even smaller! It sounds too good to be true, but with a few redesigns we’ve made it possible.

Offering the exact same power as the RAGE 1200’s wouldn’t make any sense, so we dialled it back a bit. The RAGE MI 850 MI is a 850 W mono and stable at 1 Ω. The same efficiency is clear here, 2 Ω dyno performance boasts more than 600 W.  The near identical footprint of these 2 amps makes them perfect for sleek installs.

Any Level

The  MI mono took notice of its RAGE 1200 siblings high level feature. The high & low level inputs offers greater flexibility, especially in vehicles where no RCA outputs are present. Given the modest dimensions, the amp can be hid away nearly everywhere (9.5 x 4.9 x 2.2″ / 24 x 12.5 x 5.7 cm).  There’s no excuses for having insufficient bass response anymore. Even with a small amount of space for an enclosure, our shallow mount woofer RIOT FL10 solves that. The RAGE MI 850 has a fully featured 12 dB / octave crossover section with 10 Hz ~50 Hz adjustable subsonic, 35 Hz ~250 Hz lowpass & a fixed 0 ~12 dB boost level @ 45 Hz. We even managed to squeeze in an external bass level remote port.

Specifications:

• Frequency Response: 20 Hz ~ 35 KHz
• Signal to Noise Ratio: >90 dB
• Input Sensitivity: 6 V ~ 0.2 V
• Low Pass Crossover 24 db/ Oct: 35 Hz ~ 250 Hz
• High Pass Crossover 24 dB / Oct: 10 Hz ~ 50 Hz (Subsonic)
• Damping Factor: >200
• Power Terminal gauge: 4 GA
• Fuse Rating: 100 A
• Operational voltage: 10 V ~ 14.5 V
• Dimensions: 9.45" x 5.9" x 2.2" (240 x 125 x 57 mm)
• Power Handling:
• Power @ 4 Ω 14.4 V: 1 x 350 w
• Power @ 2 Ω 14.4 V: 1 x 600 w
• Power @ 1 Ω 14.4 V: 1 x 850 w
